Add-on

Add-on

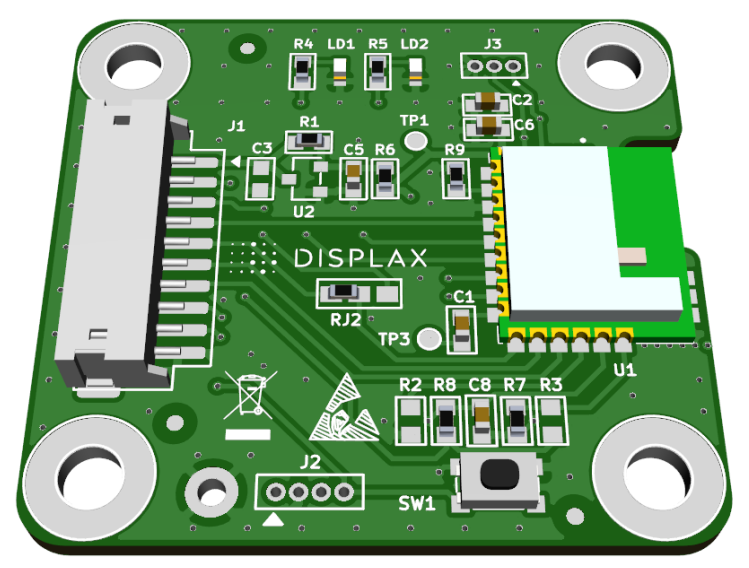

The Add-on is a Bluetooth LE module to bridge the communication between tags and the Skin Ultra controller.




The Skin Ultra controller requires an assembled interface port connector and a DPXActiveOR enabled firmware.

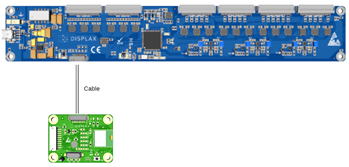

The add-on connects to the interface port of the Ultra controller. For that, a specific cable is supplied with the add-on module.




The Add-on must be integrated in ways that the Bluetooth signal won't be affected. Metal cases or other blocking materials are not recommended.
