Applications Example

Node.js Scripts

Instructions

There are scripts to use with TUIO versions 1.1 and 2.0.

To run the Node.js scripts, you will need to have Node installed on your computer.

1. Go to https://nodejs.org/dist/v8.11.2/ and download/install version 8.11.2 LTS. These Node scripts were tested with this version and may not work with other versions.
2. Reboot computer
3.  Open Command Prompt as Administrator (Windows) or Terminal (Ubuntu/macOS) and install the OSC package (needed for TUIO): npm install osc
4.  Run dpx-tuio-1.js (for TUIO 1.1) or dpx-tuio-2.js (for TUIO 2.0). Example: node dpx-tuio-2.js

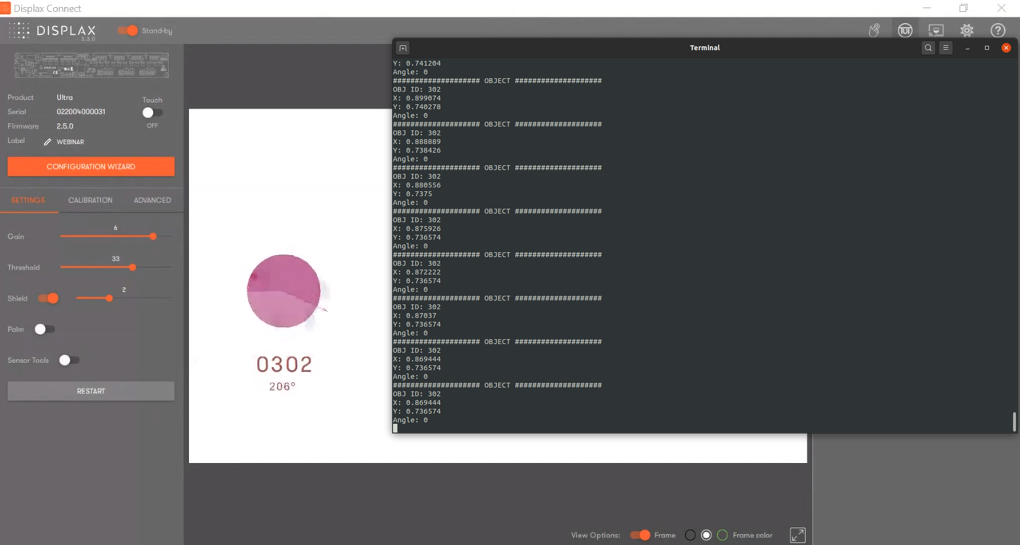

Script running example

Download

You can download the Node.js scripts here.

C++ Console Program Example

Instructions

This program made in C++ was built to output Touch and Object events coming from TUIO version 1.1. and works in Windows. For a different operating system, you can compile the program using Qt Creator or any other IDE/compiler.

Simply download and extract the files, then run “QtTUIODemo.exe”.

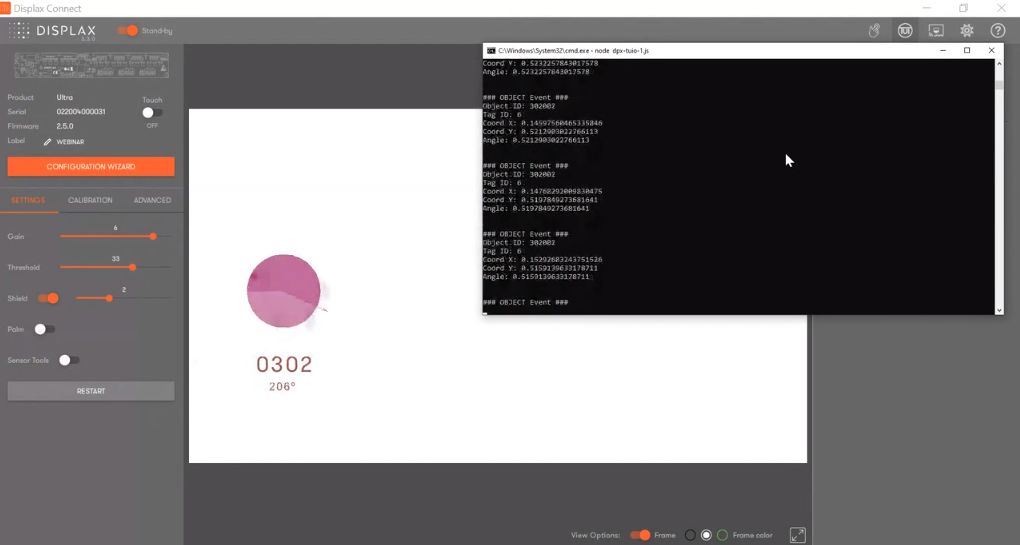

C++ console program running example

Download

• Download the program for windows here.
• The source code made on Qt Creator here.


Other implementations

Go to the TUIO website where you will find more examples, source code, and implementations for a variety of programming languages.
