Battery Indicator for Active Tags

DISPLAX Active OR Tags use their LED ring light to display battery levels and charging status. The exact percentage is also available in DISPLAX Connect.

Battery Level Indicators

Color Battery Level Description
๐ŸŸข Green Fully charged (โ‰ˆ 100%) Tag is ready for use
๐ŸŸก Yellow โ‰ˆ 50% Medium charge level
๐ŸŸ  Amber โ‰ˆ 33% Low charge level
๐Ÿ”ด Red < 15% Critical level โ€” recharge required

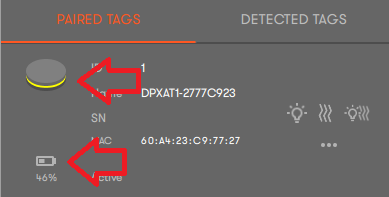

In DISPLAX Connect: The battery percentage is shown as an exact value for each connected tag.

Charging Process

  • Tags take about 5 hours to fully recharge.

  • During charging, the LED ring pulses in the color corresponding to the current charge level.

  • Once fully charged, the LED ring displays a steady green glow.

Best Practices

  • Place tags on the wireless charger or connect via USB-C cable when not in use.

  • Recharge when the LED shows amber or red to ensure uninterrupted use.

  • Avoid complete discharge to maximize battery lifespan.
