Calibration – Skin Zeeto

The Skin Zeeto sensors use the same calibration process as the Skin Ultra and Skin Fit models. Calibration ensures that every touch is accurately mapped to the display’s visual area, correcting any offset or distortion that may occur after installation.

When to Calibrate

Calibration should be performed:

• After integration of the glass sensor onto the display.

• If touch points appear offset or misaligned.

• After the controller replacement.

How to Calibrate

1. Open DISPLAX Connect.

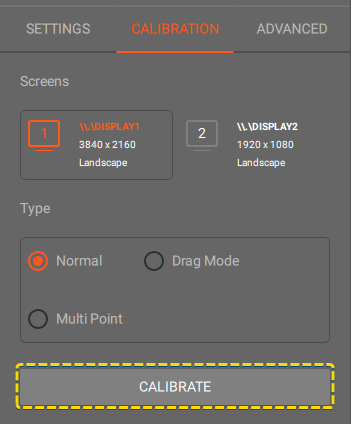

2. Go to the CALIBRATION tab.

3. Select the correct screen if multiple displays are connected.

4. Click CALIBRATE to begin the process.

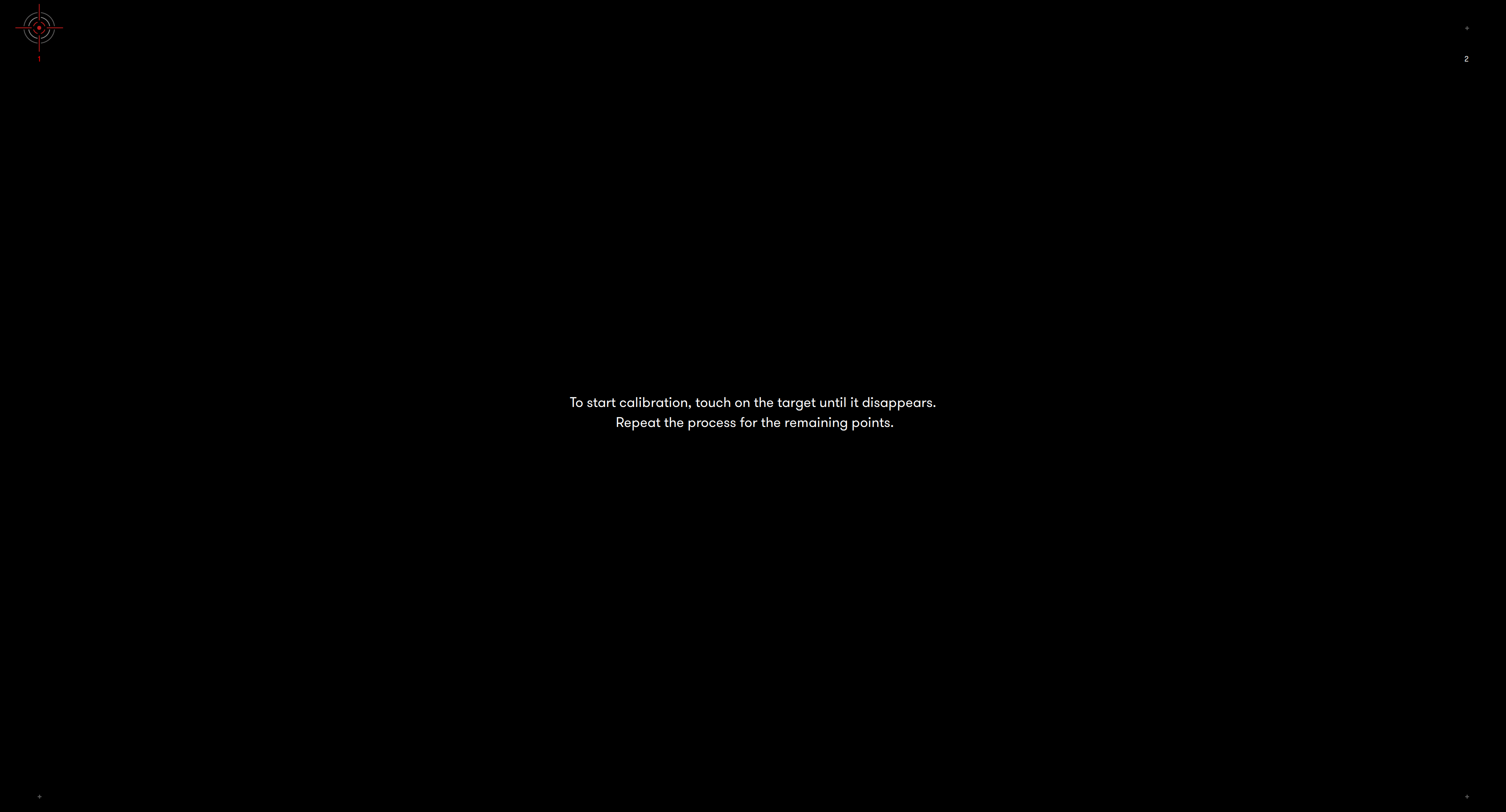

5. Follow the on-screen instructions:

   “To start calibration, touch on the target until it disappears.
   Repeat the process for the remaining points.”

Each calibration target must be touched precisely in the center until it disappears.


💡 If a target reappears after a few seconds, the touch was not properly registered — repeat the step.

Calibration Complete

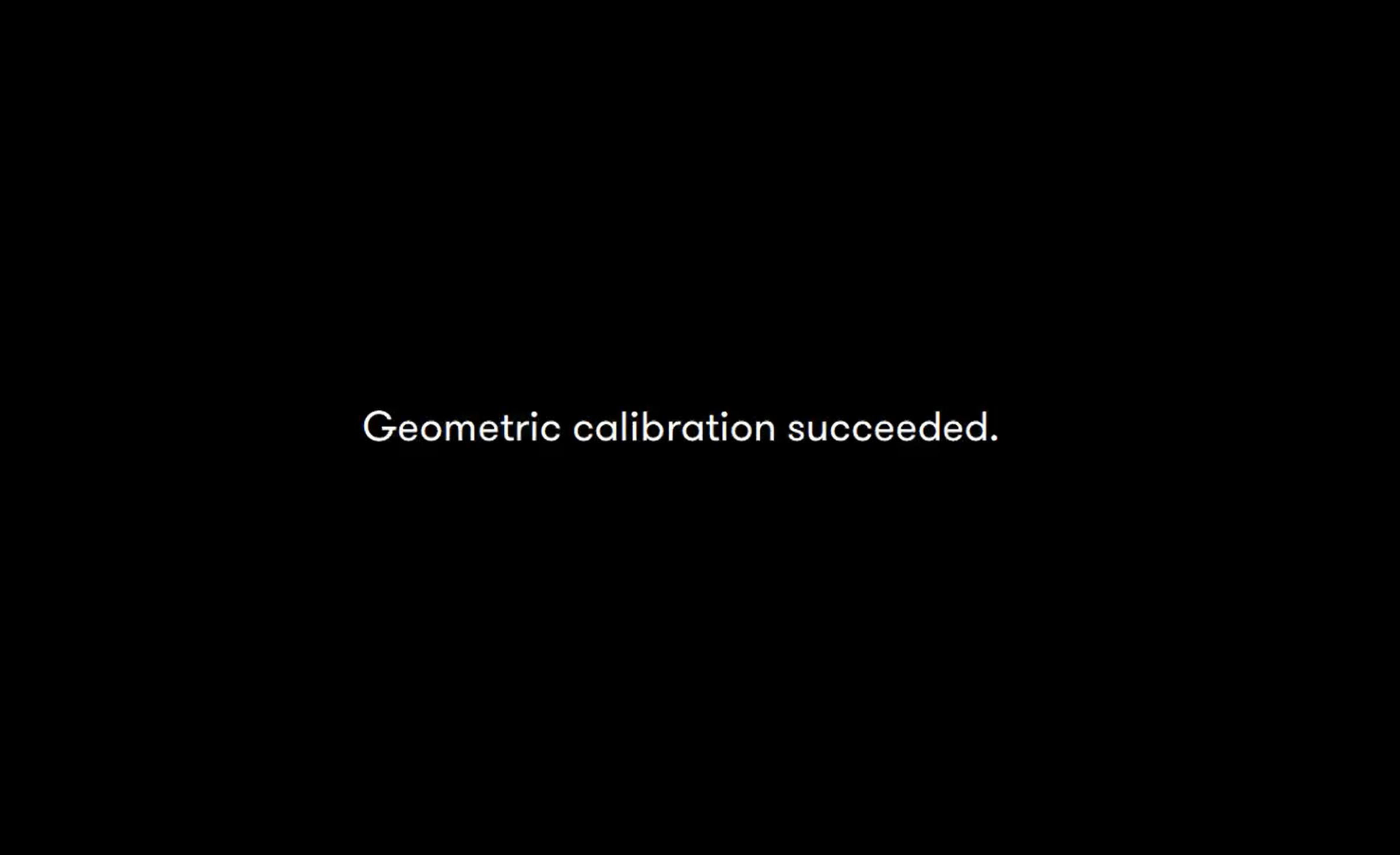

When all calibration points are successfully touched, a confirmation message will appear:

“Calibration succeeded.”

Your Skin Zeeto sensor is now ready to use, with optimized accuracy across the entire display.


⚠️ Important Notes

• Keep the workspace clean and stable during calibration — avoid movement or vibration.

• Make sure only one person is interacting with the sensor during the process.

• Do not touch other parts of the display until the current target disappears.
