Lamination

Drying Period


Leave the laminated touch sensor and glass to dry for 24 hours in a suitable, clean area, placing it flat, touch sensor side facing up.

Do not touch the touch sensor while it is drying.

Ideally, the drying area should have air conditioning to control and monitor the air, heat, and humidity levels:

a) The temperature of the air should be between 20 and 25 ºC;

b) The humidity level should be between 30% and 45%;

c) The drying time should be 24 hours.

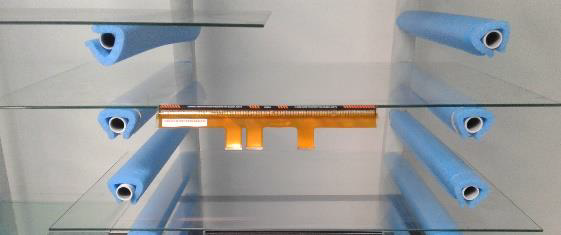

The drying area should have a structure to place the glass with the laminated touch sensor, resting on a foam cover or coating (Fig. 29)

Foil facing upFig.29
