Fine-Tuning and Auto-Tune (Tune Feature)

Unlike other DISPLAX Skin products, Skin Mesh does not require manual fine-tuning.

Skin Mesh includes an Auto-Tune algorithm that continuously adjusts the controller parameters automatically. This system creates and maintains a dynamic frame of reference, ensuring optimal touch performance even if environmental conditions change.

How Auto-Tune Works

The Auto-Tune algorithm:

  • Automatically adjusts Threshold

  • Continuously compensates for environmental changes (if there's no touches happening)

  • Maintains stable touch performance

  • Eliminates the need for manual Gain/Threshold tuning

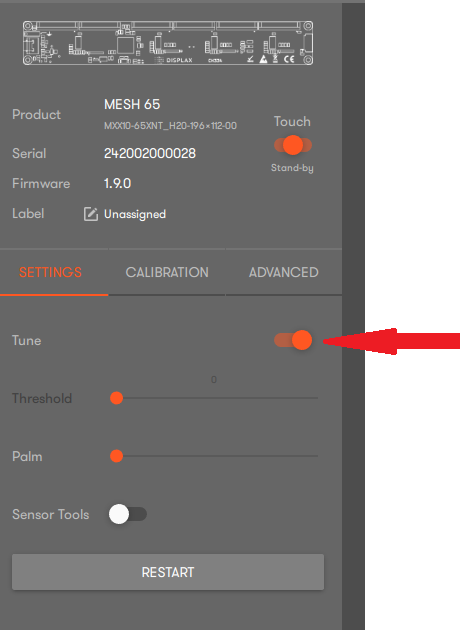

The “Tune” Toggle in DISPLAX Connect

In DISPLAX Connect, there is a toggle switch called Tune.

Recommendation

✔ Keep Tune enabled at all times

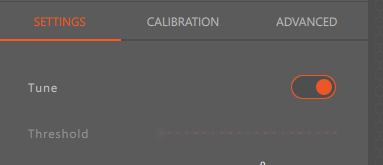

When Tune is enabled:

  • Threshold adjustment becomes automatic

  • The Threshold slider is disabled

  • The controller continuously optimizes touch performance

Important Notes

  • Manual Threshold control is disabled when Tune is ON

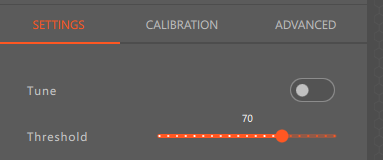

  • Disabling Tune allows manual adjustment, but this is not recommended for normal use

  • Best performance is achieved with Tune enabled

Summary

Skin Mesh is designed to operate without manual fine-tuning.
For optimal results, simply:

  1. Ensure Tune is enabled

  2. Complete calibration

  3. Close DISPLAX Connect

The controller will handle the rest automatically.
