General Preferences

General Preferences

Language

Overview

DISPLAX Connect supports multiple interface languages, allowing users to work in their preferred language for improved usability and accessibility.

Currently Supported Languages

  • English (default)

  • Chinese

  • Spanish

How to Change the Interface Language

You can change the DISPLAX Connect interface language using either of the methods below.

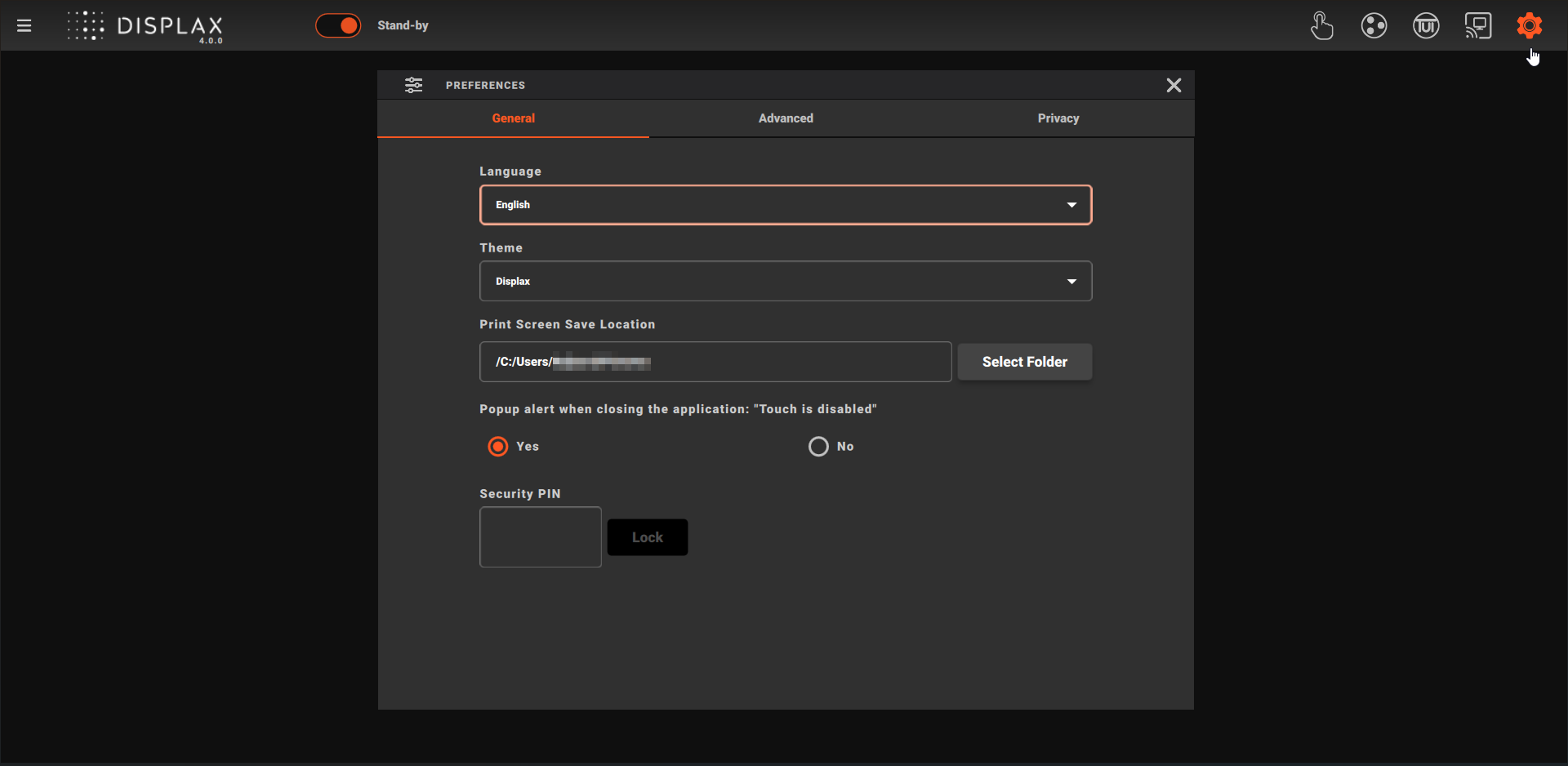

Method 1: Using Preferences

  1. Click Preferences (gear icon in the upper-right corner).

  2. Under the General tab.

  3. Select your preferred language from the drop-down menu options.


Method 2: Using the Language Selector

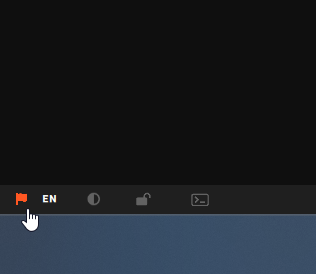

  1. Locate the Flag icon in the bottom-left corner of the DISPLAX Connect interface.

  2. Click the icon and select your preferred language.

The interface language will update immediately after selection.




Theme

Overview

DISPLAX Connect allows you to customize the application appearance by selecting from three available interface themes. Changing the theme can improve visibility and user comfort depending on your working environment.

Available Themes

  • DISPLAX (Default)

  • Dark

  • Light

How to Change the Theme

You can change the DISPLAX Connect theme using either of the methods below.

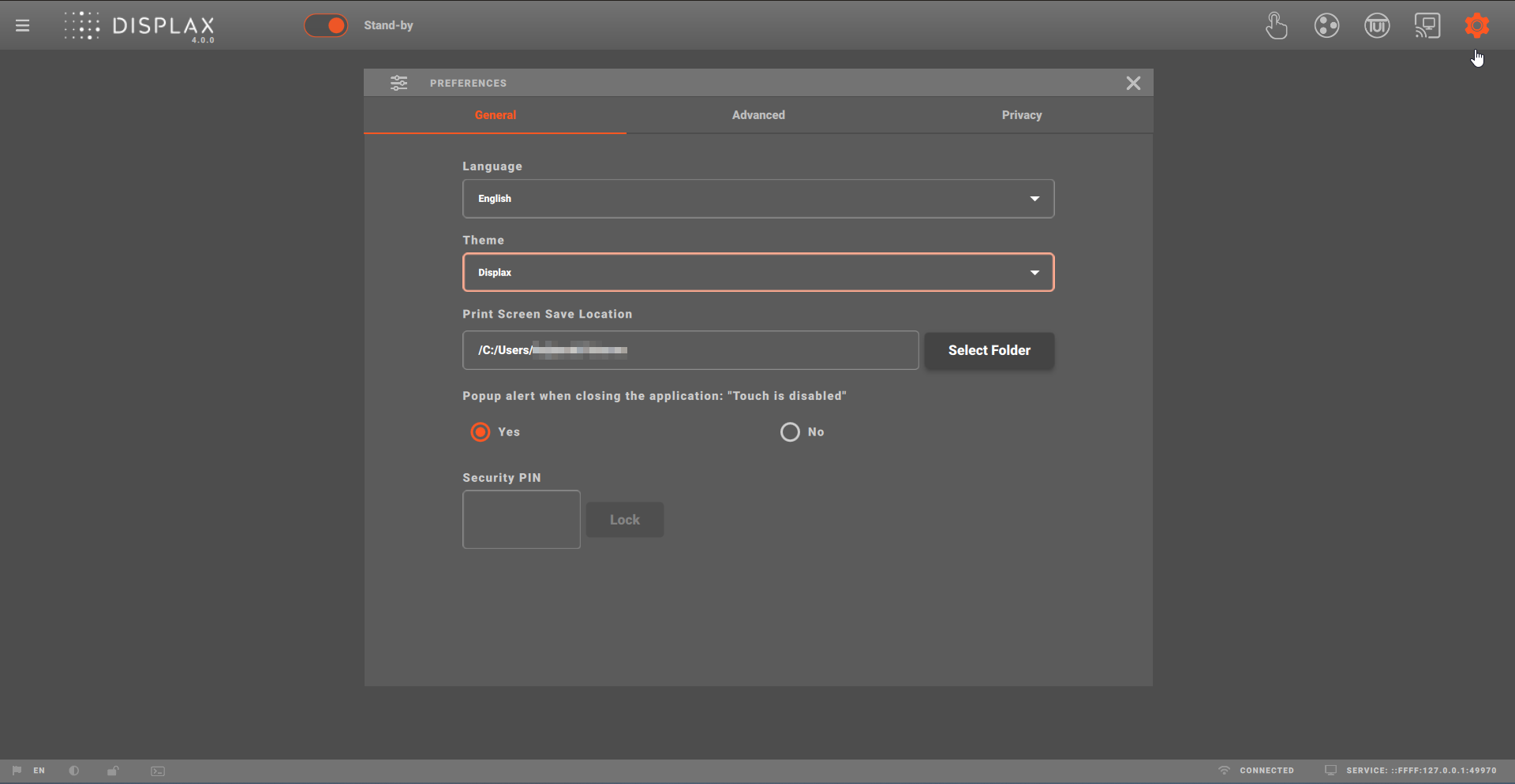

Method 1: Using Preferences

  1. Click Preferences (gear icon in the upper-right corner).

  2. General tab.

  3. Select the desired theme from the Theme drop-down menu.



Method 2: Using the Theme Selector

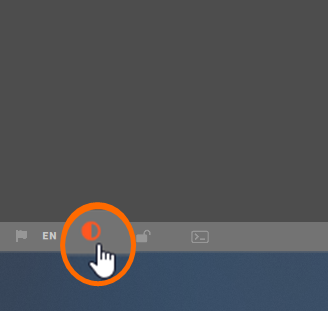

  1. Locate the Theme Selector icon in the lower-left corner of the DISPLAX Connect interface.



  2. Click the icon.



  3. Select your preferred theme.

The new theme is applied immediately.


Print Screen

Overview

DISPLAX Connect includes a built-in Print Screen feature that allows you to quickly capture screenshots of the application. This is useful for troubleshooting, support cases, and sharing configuration details.

The Print Screen function captures the current DISPLAX Connect interface exactly as displayed on screen.

How to Use Print Screen

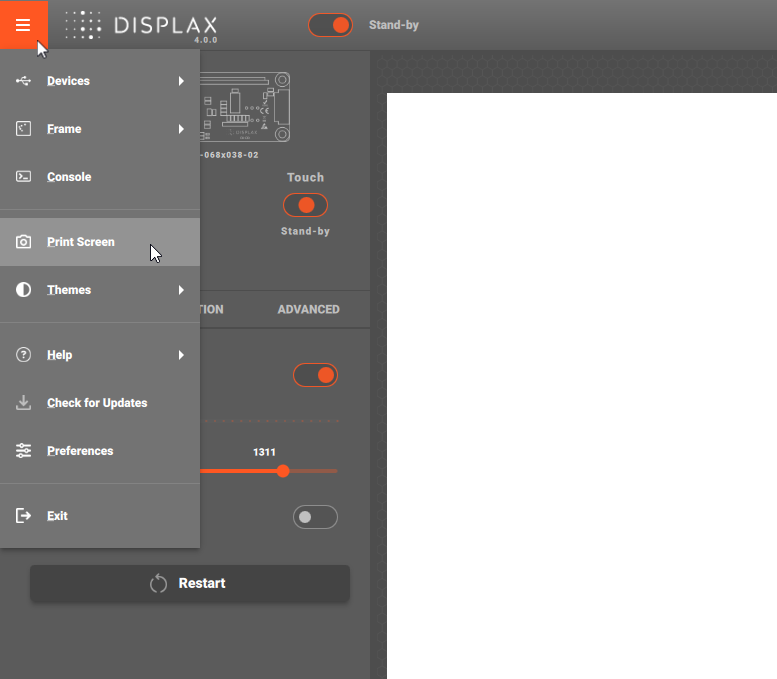

  1. Click the Menu icon in the upper-left corner,

  2. Select Print Screen

Note: You can use the keyboard shortcut P to capture a print screen at any time in Displax Connect.



Use Cases

  • Sharing configuration details with DISPLAX Support

  • Documenting calibration or setup steps

  • Capturing sensor behavior during testing

  • Recording visual evidence of issues such as interference or "noise".

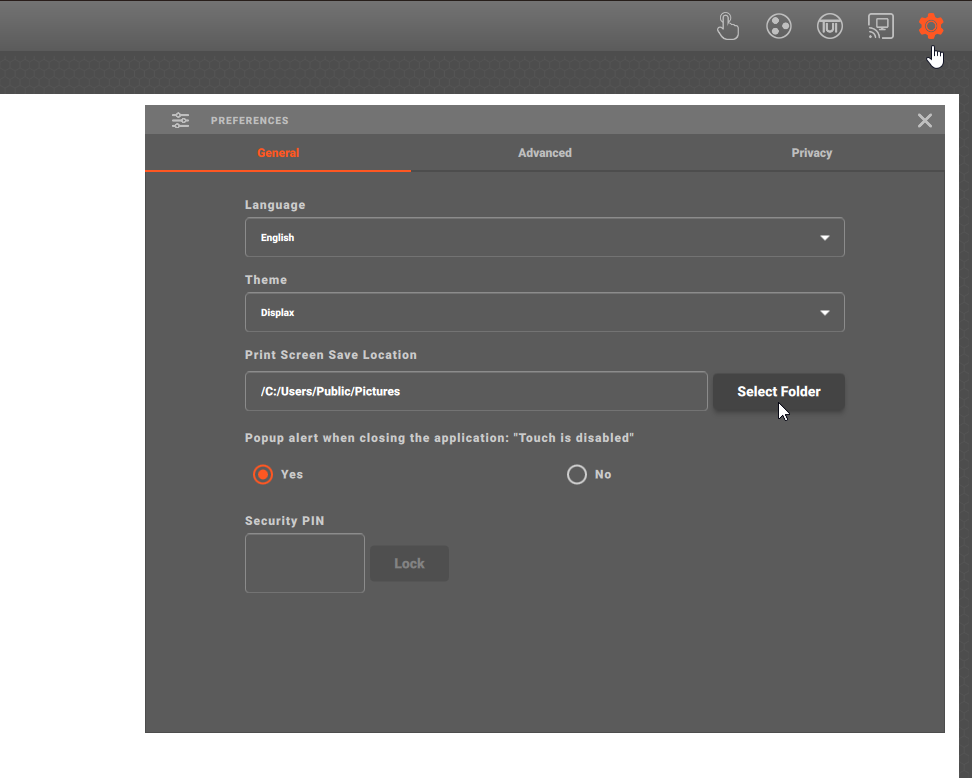

The location of saved screen prints can be changed from:
  1. Preferences - gear icon in upper-right corner
  2. General tab, click on Select Folder
  3. Define the desired save location


Notes

  • Screenshots reflect the current state of the application at the moment of capture.

  • Captured images can be attached to support tickets or saved for internal documentation.

Touch Status Popup

Overview

DISPLAX Connect includes a Touch Status Popup designed to prevent accidental shutdowns with touch input disabled.

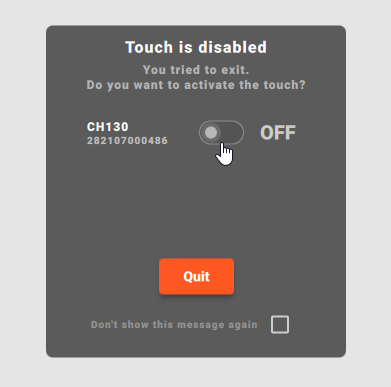

If you close DISPLAX Connect while Touch Injection is set to OFF, a warning popup appears with the message:

“Touch is disabled”

The popup includes a toggle that allows you to immediately re-enable touch before exiting the application.



Important Behavior

If DISPLAX Connect is closed while Touch Injection remains OFF:

  • No touch input will be processed.

  • Touch will remain disabled until it is manually set to ON again in DISPLAX Connect.

This safeguard helps avoid situations where touch appears unresponsive after closing the application.

How to Disable the Touch Status Popup

You can disable this warning in either of the following ways:

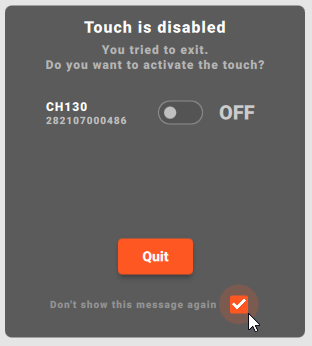

Method 1: From the Popup

  • When the popup appears, select the checkbox:
    “Don’t show this message again”


  • Close DISPLAX Connect normally.

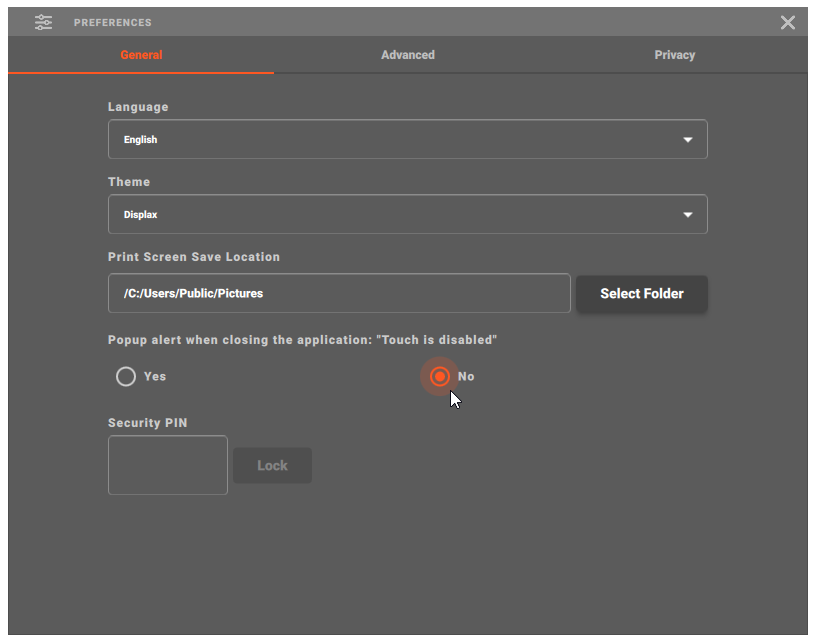

Method 2: From Preferences

  1. Open Preferences (gear icon in the upper-right corner).

  2. General tab.

  3. Under the option:
    “Popup alert when closing the application: ‘Touch is disabled’”

  4. Select No.


To avoid unexpected touch issues:

  • Ensure Touch Injection is ON before closing DISPLAX Connect.

  • If the popup is disabled, verify touch status manually when reopening the application.


Security PIN

Overview

Displax Connect lets you set a Security PIN to protect your configured settings. This ensures only authorized users can change touch controller configurations.

  • 🔒 How to Set a Security PIN:

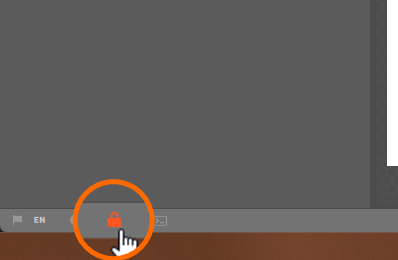

    1. Click the open Lock icon in the lower-left corner of Displax Connect,



    2. or click Preferences (gear icon) in the upper-right corner of Displax Connect


    3. In the General tab, enter a 4-digit PIN and click Lock:


    4. Enter the PIN created and click OK.



    5. Once set, the Lock icon in the lower-left corner will appear closed.



    6. The Security PIN will be required:

      • The first time after setting it;

      • Every time you launch Displax Connect:




🔓 Disabling the Pin:

Once you unlock Displax Connect with your PIN, you can disable the Security Pin feature by opening the Preferences, and clicking on Unlock in the General tab:




If you forgot your PIN or need assistance, contact Displax Support.
