How can I setup multiple touch screens in Windows 10/11?

How can I setup multiple touch screens in Windows 10/11?

How do I correctly configure multiple touchscreens in Windows 10 or Windows 11 so each screen responds to touch input?

Windows allows multiple touchscreens to be used simultaneously, but they must be explicitly associated with the correct display. This process ensures that each physical touchscreen maps to the correct monitor.

Prerequisites

Before starting, ensure the following:

  • ✅ An external keyboard is connected to the PC

  • ✅ Windows is set to Extended Desktop mode

    • Press Windows Key + P

    • Select Extend

Step-by-Step Configuration

Windows 10

This process will cycle through all connected monitors, allowing you to identify which ones support touch.

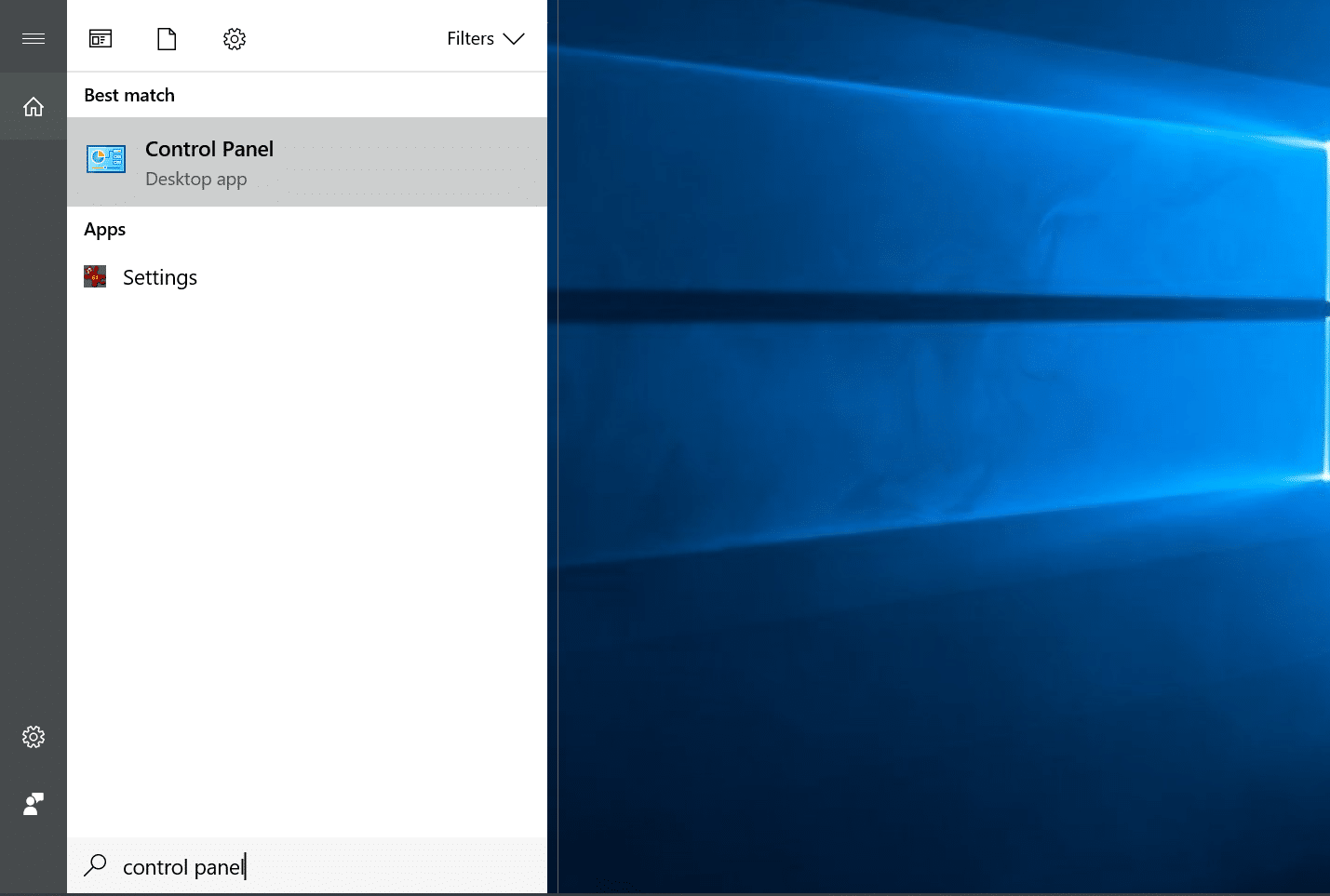

1. Open Control Panel

  • Click the Start Menu

  • Start typing Control Panel

  • Click Control Panel when it appears

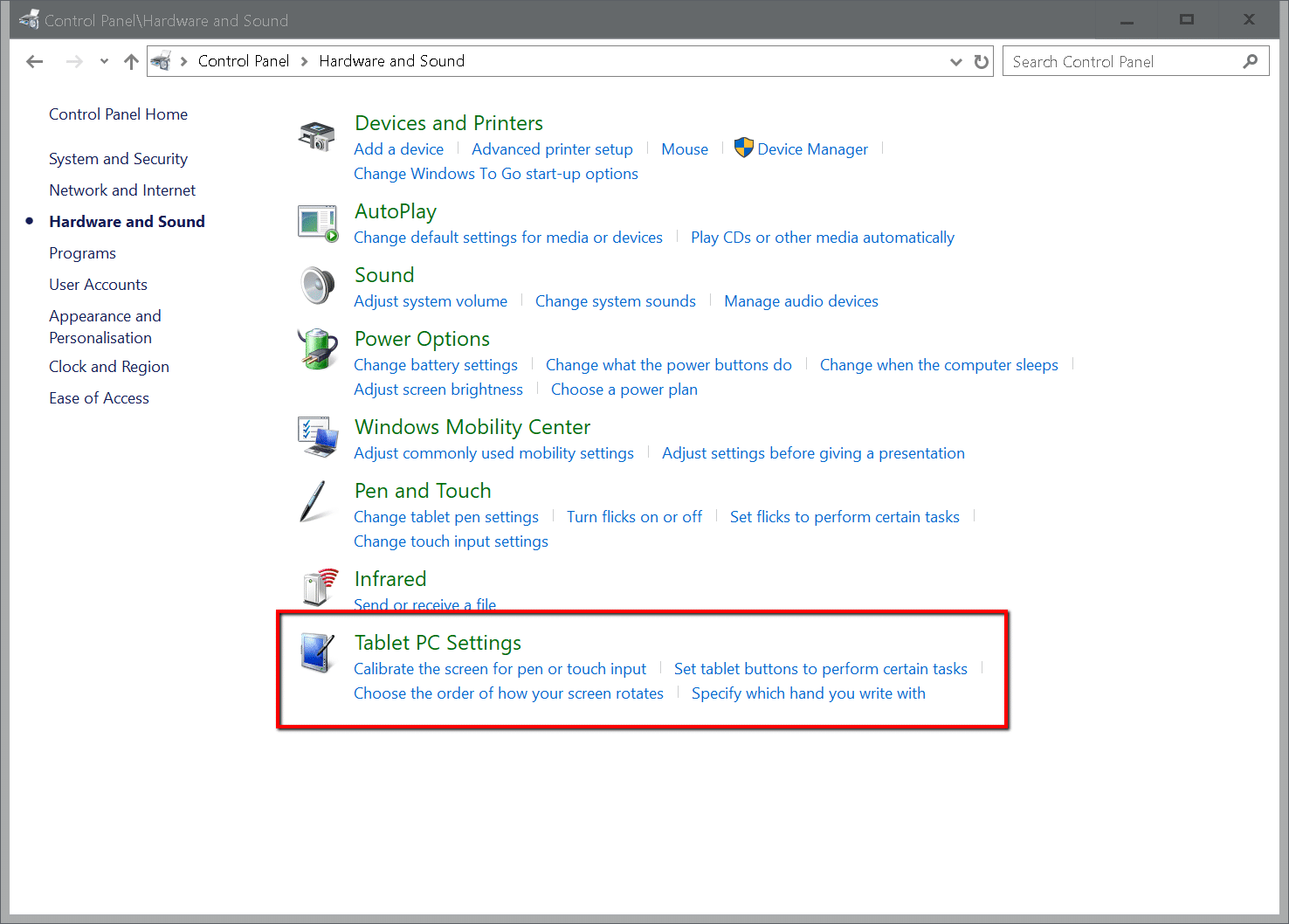

2. Navigate to Tablet PC Settings

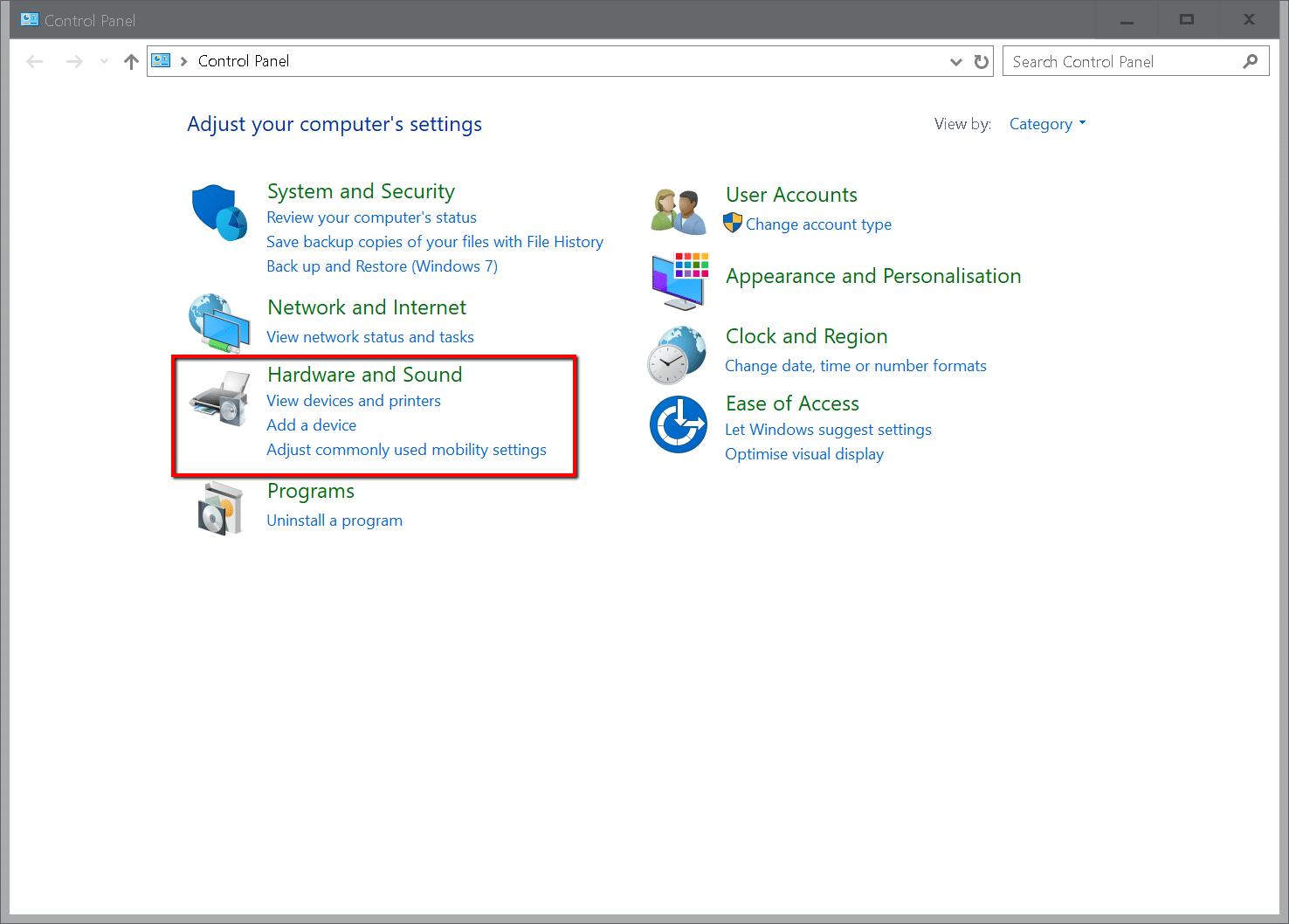

  • Select Hardware and Sound

  • Click Tablet PC Settings

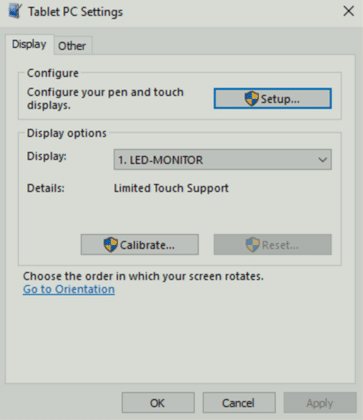

3. Start Touchscreen Setup

  • Click the Setup button


4. Identify Each Screen

You will now be prompted on each monitor in sequence:

  • If the screen supports touch, touch the screen when prompted:

    “Touch this screen to identify it as the touchscreen”

  • If the screen does not support touch, press Enter on the keyboard

Repeat this process for every connected monitor.

5. Complete the Setup

  • The setup window will close automatically once all monitors are accounted for

  • Test touch input on each touchscreen

  • If touch does not behave correctly, repeat the process starting from Step 3

6. Restart and Verify

  • Restart the computer

  • Verify that touch input still works correctly on all applicable screens

Step-by-Step Configuration

Windows 11

Notes & Best Practices

  • This procedure works for any multi-monitor configuration, regardless of how many touch or non-touch displays are connected

  • Always repeat this process after:

    • Changing monitor connections

    • Updating graphics drivers

    • Reinstalling Windows

  • Ensure all monitors are powered on and detected by Windows before starting

Summary

To use multiple touchscreens in Windows 10/11, each screen must be manually identified through Tablet PC Settings. This ensures touch input is correctly mapped and prevents misaligned or inactive touch behavior.
