Placing the Touch Sensor on the Glass
Lamination
Laying the Touch Sensor over the Glass

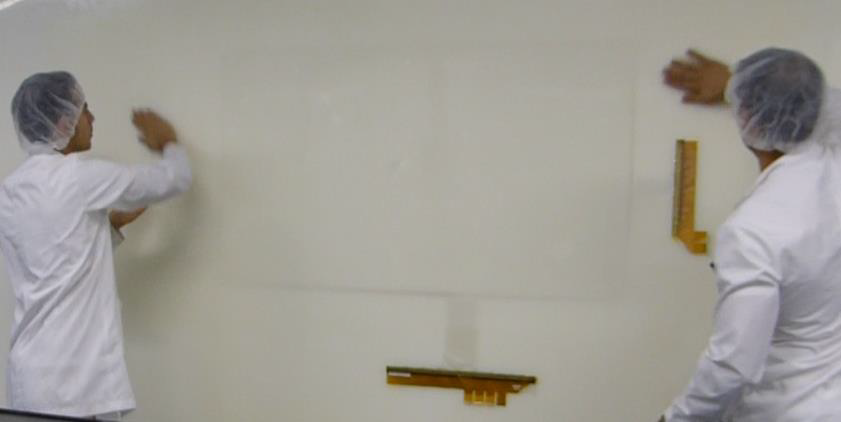

To remove the touch sensor from the wall, wet your fingers to prevent fingerprint marks on the film glue (Fig.16)

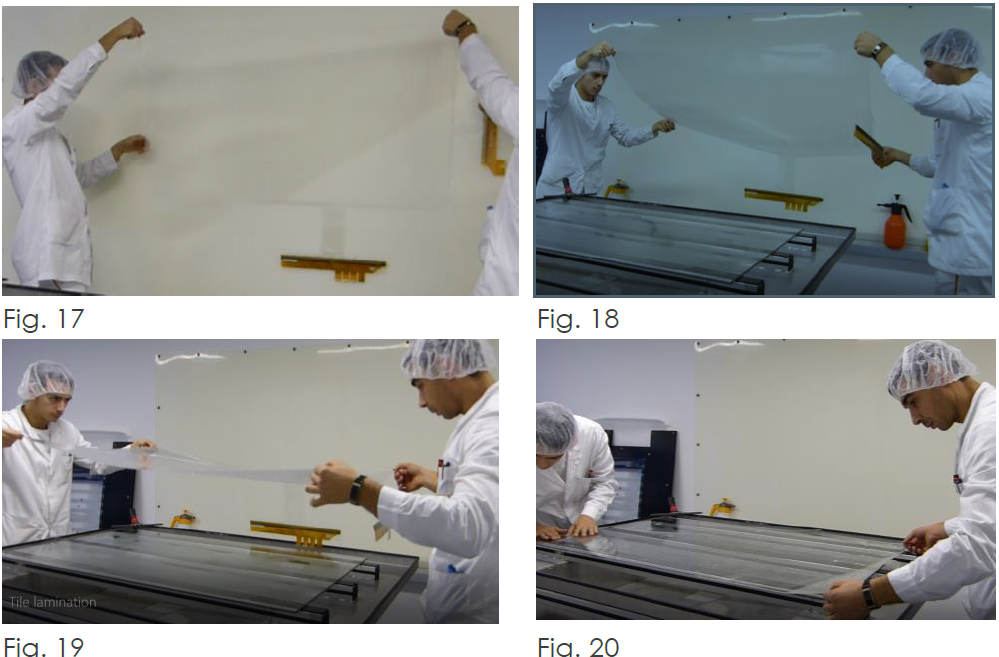

To avoid folding or creasing the touch sensor, two people are required to remove it from the wall, keeping it stretched and laying it on the glass (Fig. 17, 18, 19, and 20)

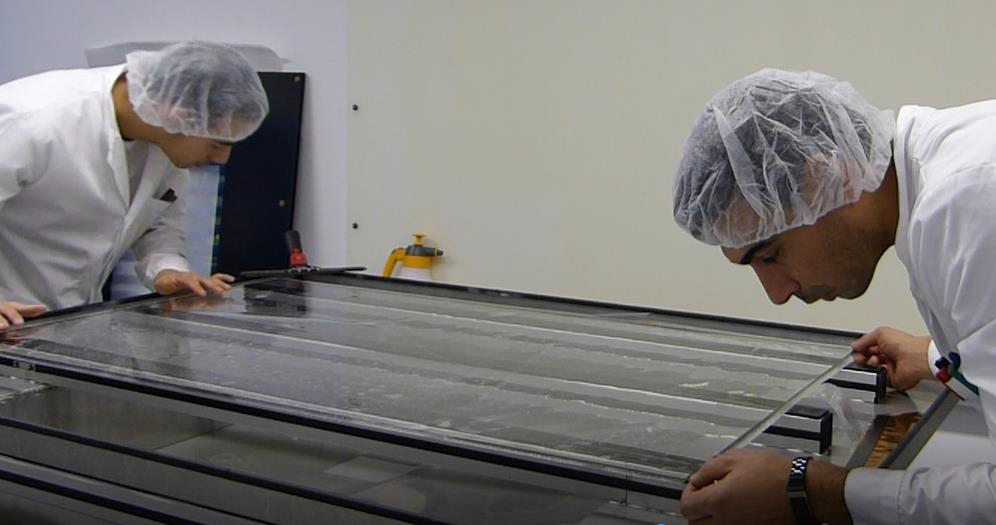

Align the sensor edges to the glass (Fig.21)

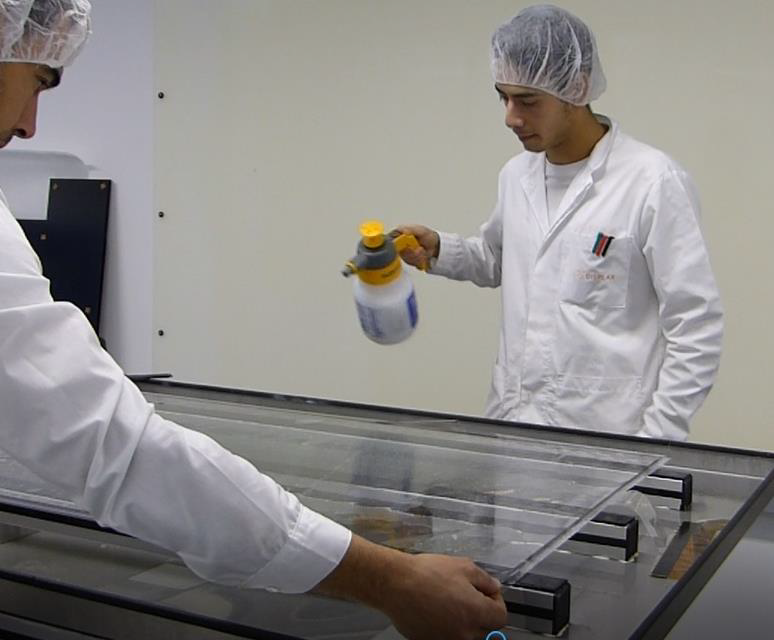

Spray the MIX solution over the touch sensor to start laminating it (Fig.22)
