Calibration
The DISPLAX MESH is configured to offer a Plug&Play experience.
The HID technology negates the need for any drivers, however, calibration may be required if there is an apparent offset to the touch accuracy.
To perform the calibration, simply install Displax Connect on your laptop or computer connected to the display behind your touch sensor, then:

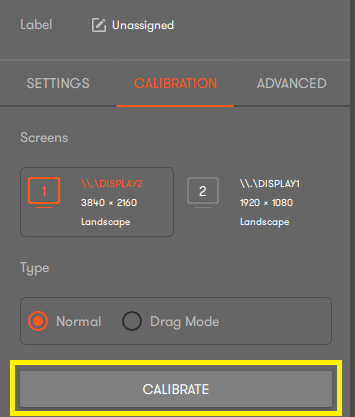

- Launch Displax Connect and select the CALIBRATION tab
- Select the Screen to be calibrated
- Click on CALIBRATE

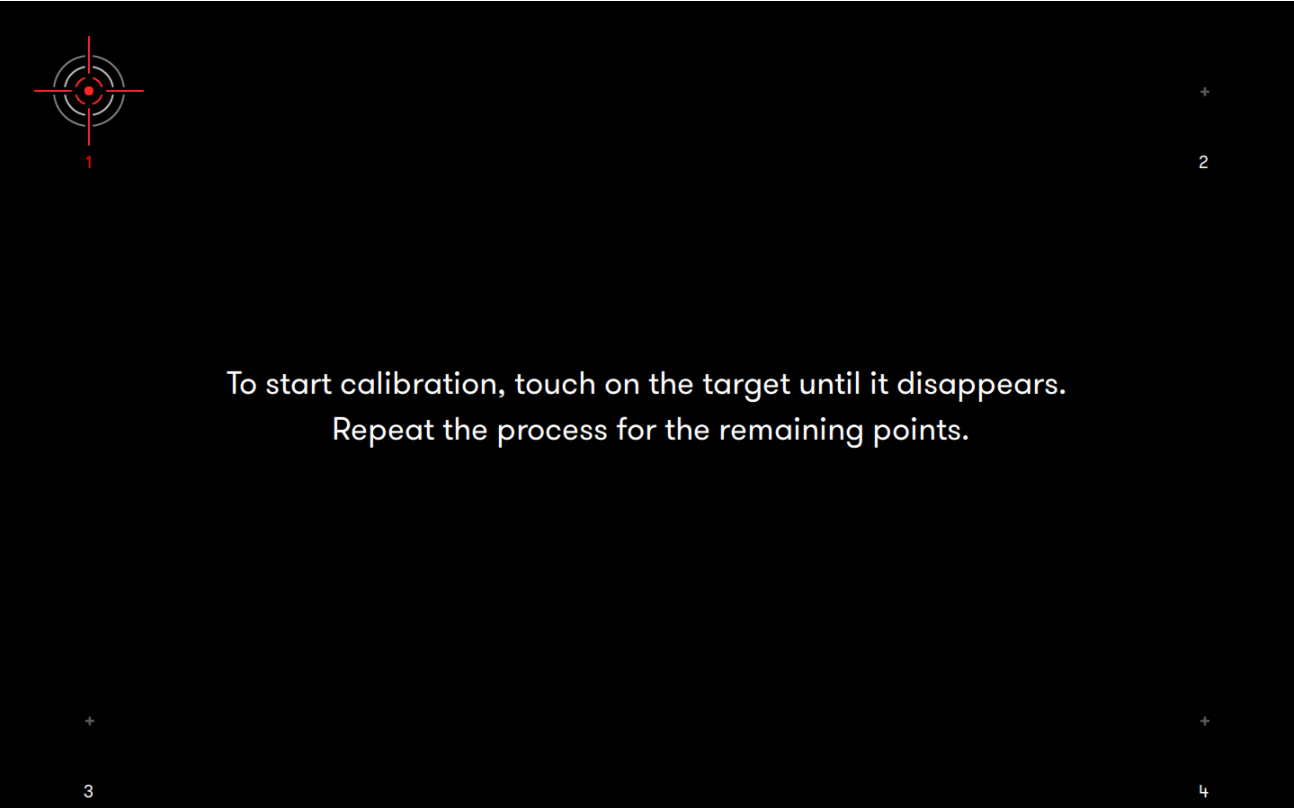

A black screen with four calibration points and a target on the first will be displayed, with the instruction:
To start calibration, touch on the target until it disappears.
Repeat the process for the remaining points.
- Touch and hold your finger on the point in the center of the target until a complete, green circle forms around it - the on-screen text will then display "Wait. Processing point data."
- Stop touching the target at this point
- Perform the same process for each next target as they appear in sequence for the remaining points
The Calibration screen will close and save the data automatically. All the data is saved on the touch controller, which means that you can connect it to different machines and the calibration will be saved.
- You may now close Displax Connect
