Controllers and Configuration (Config ID)

Depending on the sensor size, DISPLAX Skin Mesh requires a specific Touch Controller.

Using the correct controller and configuration is essential for proper operation.

Available Controllers

DISPLAX provides three controller models for Skin Mesh:

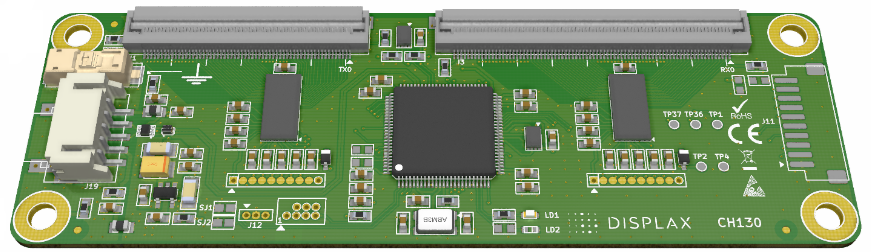

• CH130 → 22" to 32"

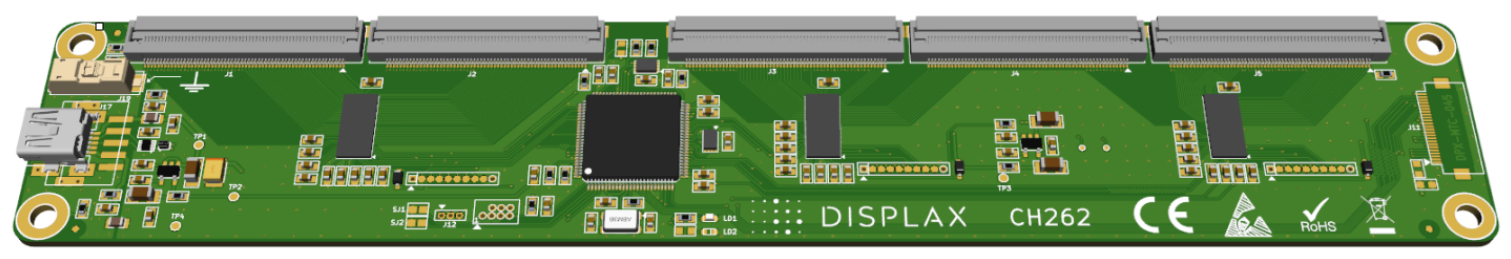

• CH262 → 43" to 55"

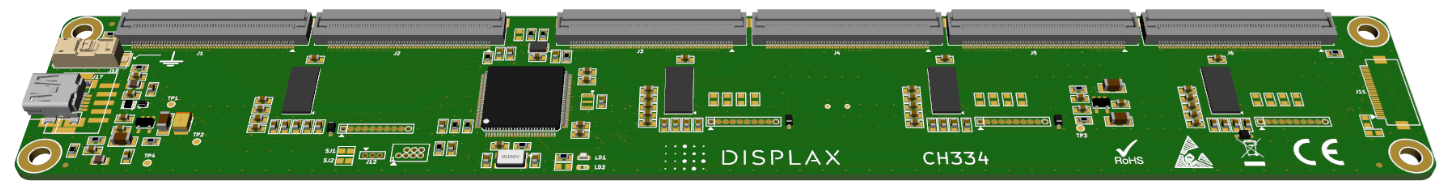

• CH334 → 65" to 86"



Each controller supports a defined range of sensor sizes.

What is the Config ID?

Each controller is programmed with a specific Configuration ID (Config ID).

The Config ID:

• Matches the controller to a specific sensor size

• Defines the number of channels (rows and columns)

• Is set before shipment

• Cannot be used interchangeably with other sensor sizes

⚠️ A controller will only function correctly with the sensor size it was configured for.

Important Integration Note

Controllers are not universal across all Skin Mesh sizes.

For example:

• A CH262 configured for 49" will not work with a 55" sensor unless specifically programmed for it.

• Replacing a controller requires matching the correct Config ID.

If replacing a controller, always confirm:

• Sensor size

• Product reference

• Original Config ID

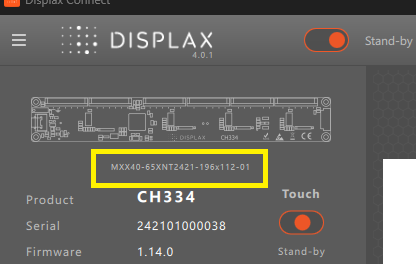

How to Check the Configuration

To verify the controller configuration:

1. Open DISPLAX Connect

2. Look at the left pane

You will see:

Best Practices

• Never swap controllers between different Mesh sizes without confirmation

• Always record the Config ID for maintenance purposes

• Contact DISPLAX Support if unsure about compatibility
