Object Recognition
Passive Object Recognition & TUIO Configuration in Displax Connect
Object Recognition

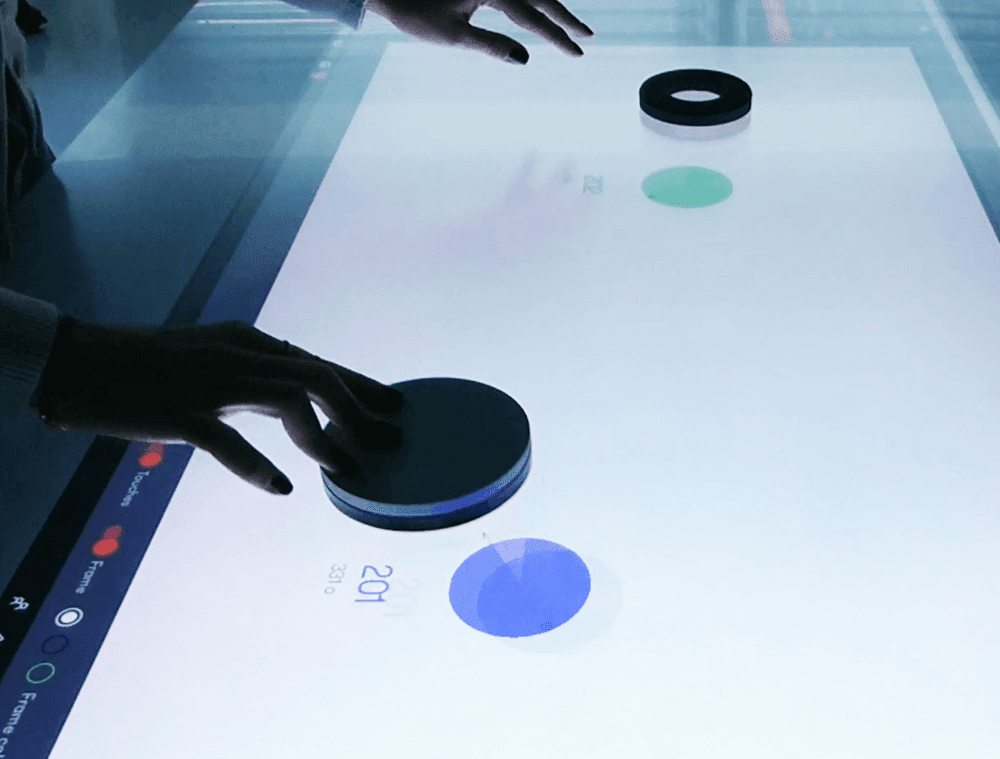

The Object Recognition feature enables physical (Passive) Tags to be identified and tracked as unique objects via the TUIO protocol.
When enabled: Tags are recognized as objects and TUIO messages (ID, position, rotation) are sent.
When disabled: Tags are treated as normal touchpoints; no object data is transmitted.
⚠️ Available on: DISPLAX Skin ULTRA, TILE, and TILE PRO only.
Configuring TUIO Output
To send touch events through the TUIO protocol:
Click the TUIO icon in the top-right corner of Displax Connect.
Select the appropriate Touch Controller if more than one is connected.
Enter the IP address and Port of the receiving client - this is filled automatically for a single touch controller - for multiple controllers, increment the Port nmber for the subsequent controllers to 3334; 3335; etc. (see this example)
Click “ADD TUIO CLIENT”.
💡 Important: Configure TUIO after finishing all touch setting adjustments and calibration.
TUIO Behavior After Setup
Once TUIO is active and events are received on the client PC, you can close Displax Connect.
TUIO will continue running in the background as a:
Daemon on Windows
Agent on macOS
To stop TUIO, follow the TUIO Shutdown Steps:
- Click the TUIO icon in the top-right corner of Displax Connect.
Click the Trash Can icon under TUIO Clients.
⚠️ Limitations:
TUIO is limited to 20 simultaneous touches, regardless of OS.
It is recommended to stop TUIO before uninstalling Displax Connect.
