Object Recognition on multiple Tiles

Object Recognition on multiple Tiles

You can set up multiple Tiles next to each other, via Daisy Chain or direct connection, and enable Object Recognition in all of them.

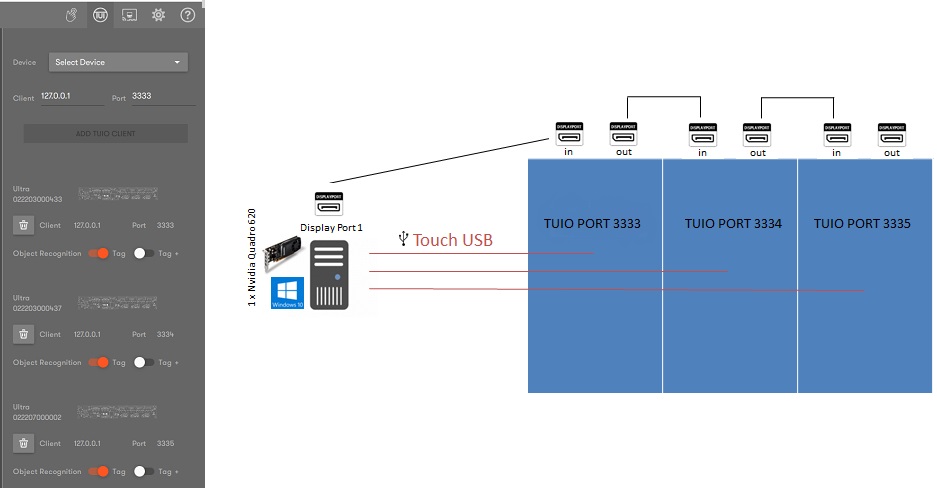

For this, you need to enable TUIO client for each connected device, and set a different port for each TUIO client, as displayed in the image below.



Please note:

  • Even though it has an ultra-thin bezel, it is not possible to properly recognize a Tag placed across two or more Tile units
  • You can only use 6 Tags at a time per Tile unit.
  • TUIO has a limitation of 20 simultaneous touches for each client

The following video shows an example of how to add TUIO Client on multiple devices:



For more information regarding Object Recognition, click here.
