Object Reconition on multiple Tiles or Sensors
Object Recognition on Multiple Tiles
You can set up multiple Tiles side by side, either via Daisy Chain or direct connection, and enable Object Recognition on all of them.
Setup Instructions
-
Enable TUIO Client on each connected device.
-

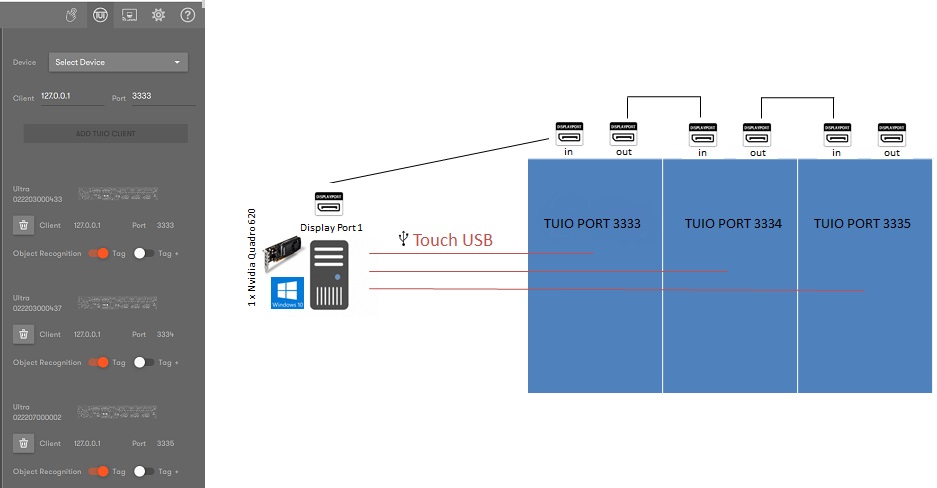

Assign a different port for each TUIO client, as shown in the image below.
Important Notes
-
Despite the ultra-thin bezel, Tags cannot be properly recognized across two or more Tile units.
-
Each Tile unit supports a maximum of 6 Tags at a time.
-
TUIO supports a maximum of 20 simultaneous touches per client.
Additional Resources
-
Watch this video to see an example of how to add a TUIO Client on multiple devices.
