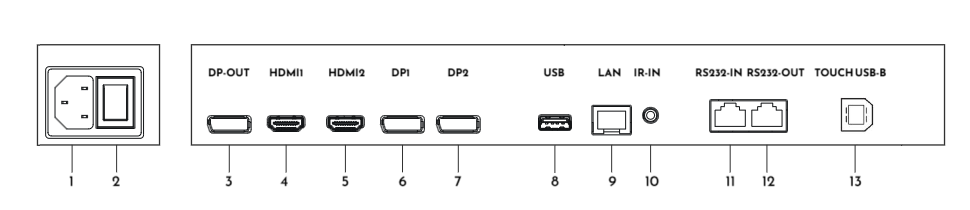

Ports
Signal Port | Description | Signal Port | Description |
1 | Power port | 7 | DP2 input port |
2 | ON/OFF switch button | 8 | USB 2 |
3 | DP-OUT port | 9 | LAN port |
4 | HDMI1 input port | 10 | IR-IN port |
5 | HDMI2 input port | 11 | RS232-IN port |
6 | DP1 input port | 12 | RS232-OUT port |
13 | Touch port |
Notes:
- Signals input via RS232-IN can be output via RS232-OUT.
- HDMI1/HDMI2 input port supports the maximum resolution of 3840*2160@60Hz.
- DP1/DP2 input port supports the maximum resolution of 3840*2160@60Hz.
- DP-OUT port supports the output of signals input via HDMI/DP ports.
