Power Requirements

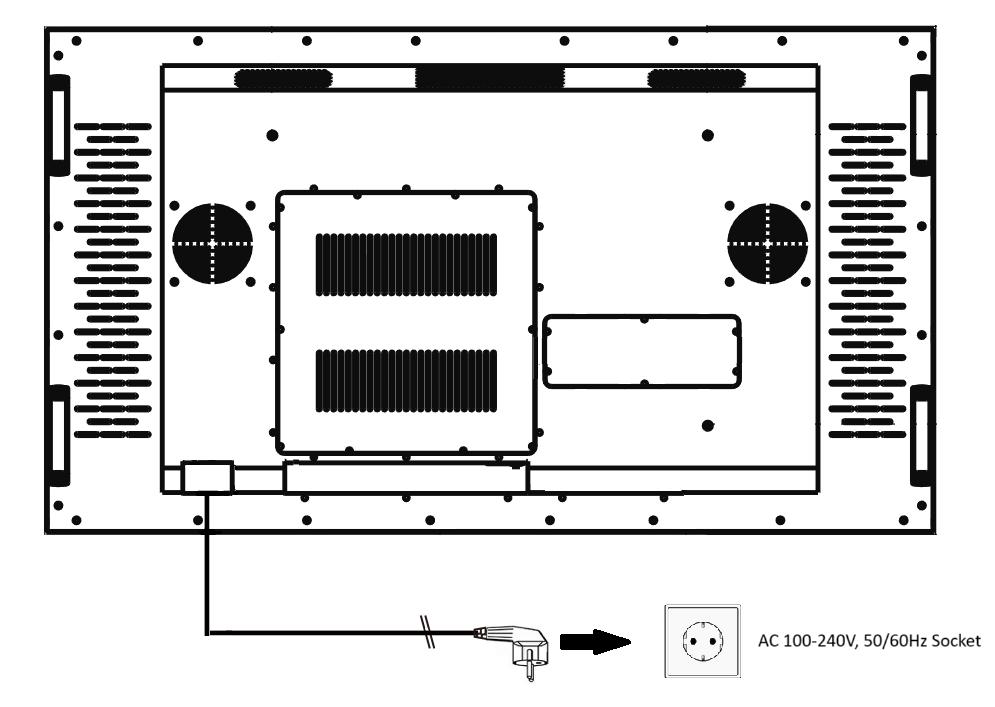

The DISPLAX TILE Pro requires a power input of AC 100-240V 50/60 Hz, ensuring compatibility with standard global power supplies.

The display connects via a standard power cord. For safety and energy conservation, it is recommended to disconnect the power supply if the unit will remain idle for an extended period.

This helps prevent unnecessary power consumption and protects the device during long-term inactivity. Always ensure the power supply is stable and grounded for optimal performance and safety.
