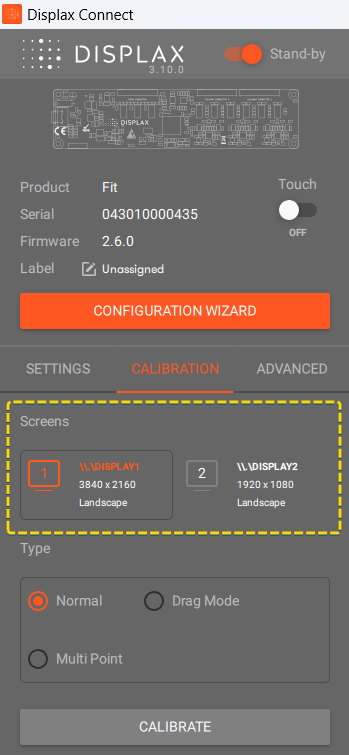

Screens

When you have more than one monitor connected, you can choose on which one the calibration screen should appear.

Attention: After calibration, each operating system has its own way to operate the touch sensor on a specific screen. This option in DISPLAX Connect allows you to get the calibration points to appear on the desired monitor. It does not tell the Operating System that the Touch Sensor should be working on that specific screen.
