Settings Adjustments

Settings Adjustments

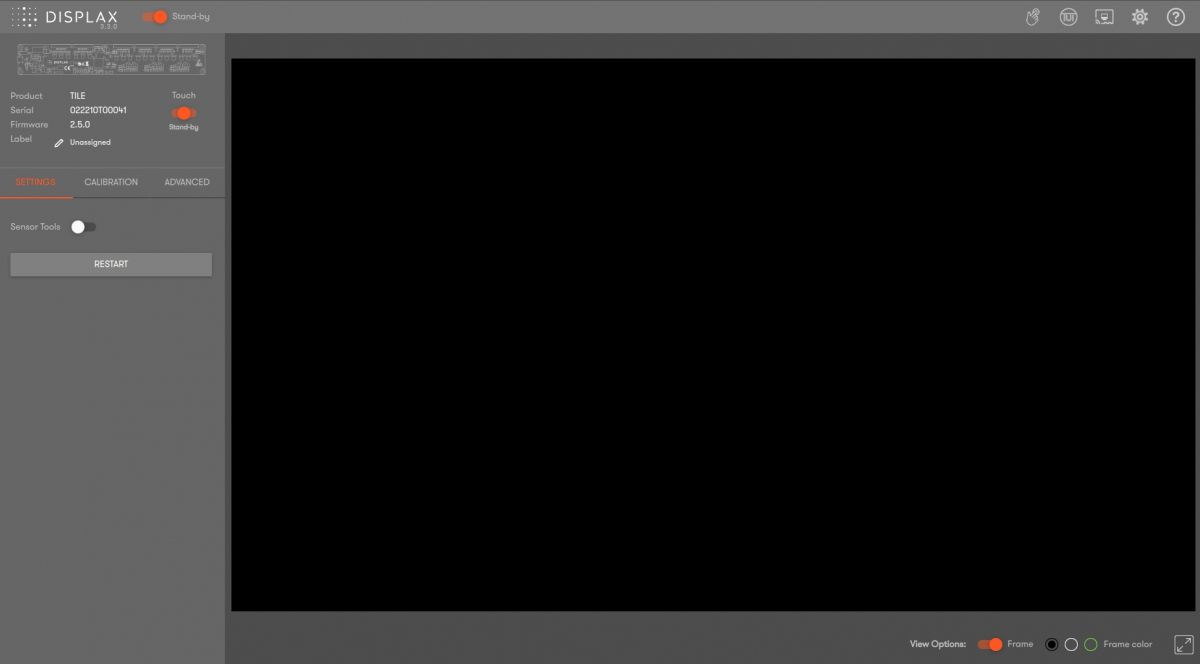

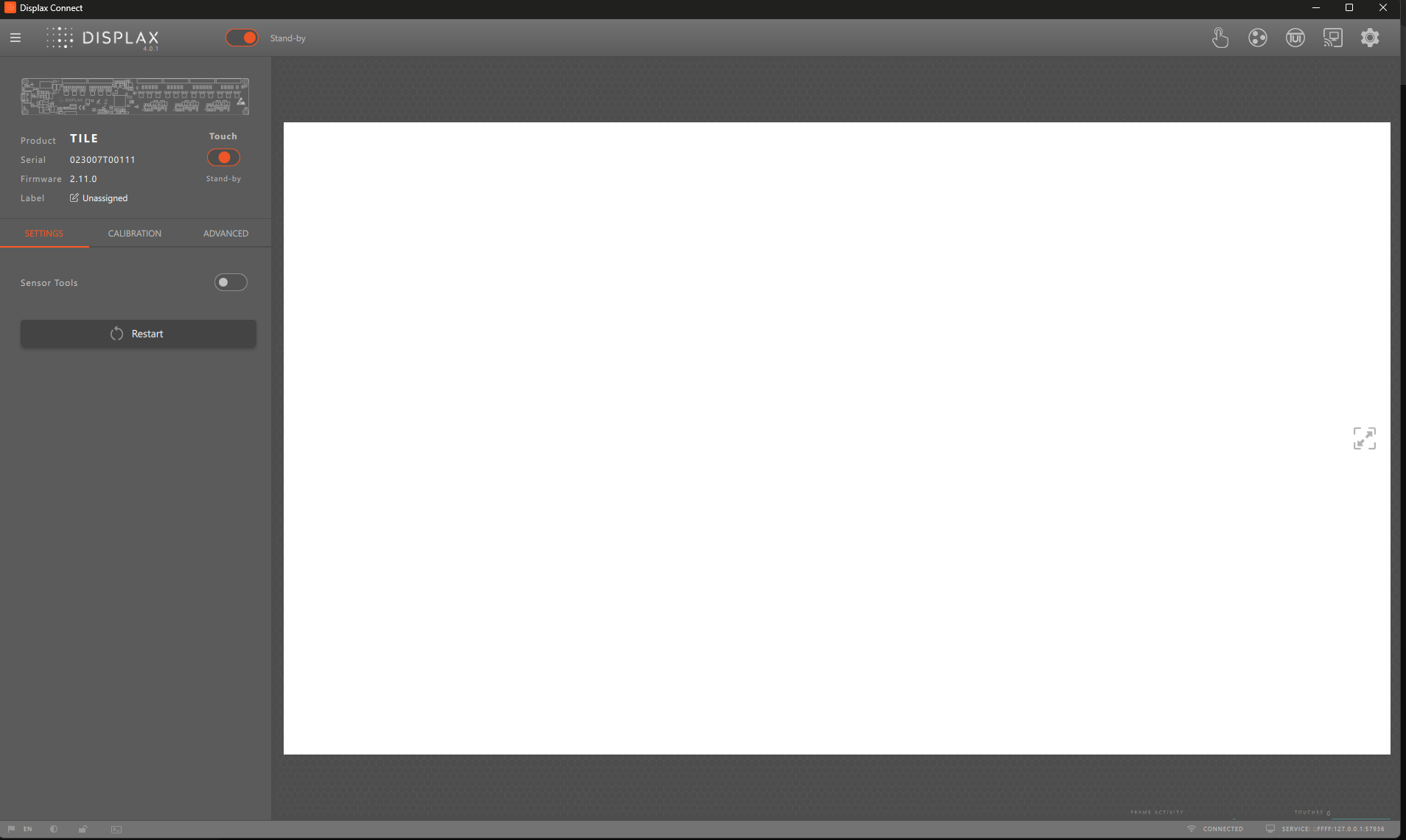

The DISPLAX TILE is configured at the factory, so there is no need to change its settings. All that is required is a new calibration, taking into consideration your setup configuration. Therefore, no settings need to be adjusted on the Settings Tab in DISPLAX Connect software as the following picture demonstrates:



If for any reason you think you may need settings adjustment, or need help with fine-tuning, please contact the DISPLAX Support Team.
