Touch Controller Grounding Points

Touch Controller Grounding Points

All DISPLAX touch controllers, apart from the grounding connector, feature additional grounding points. These points are situated within the holes positioned at each corner.

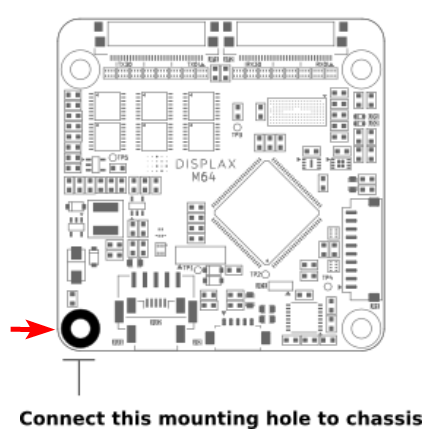

However, in the Skin Mesh controllers, only the two holes on the connector's side can serve as grounding points.

The images below indicate the specific grounding points available on each controller.

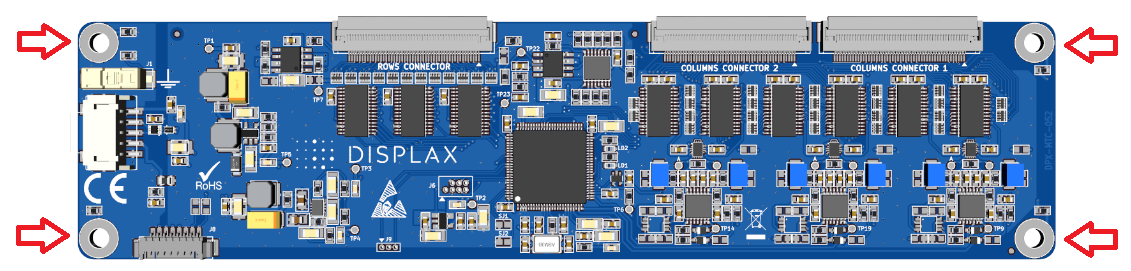

Skin Ultra

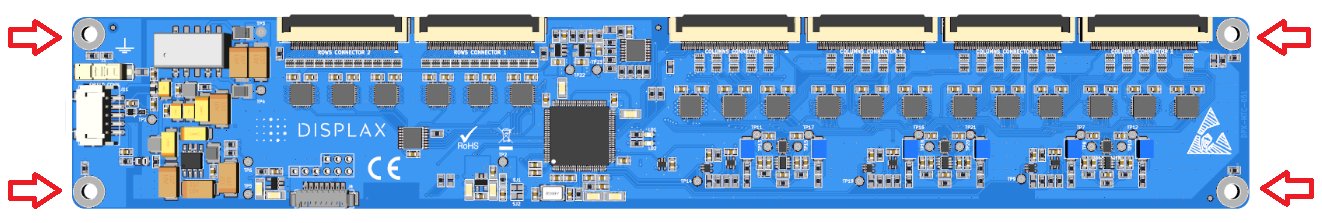

Skin Fit

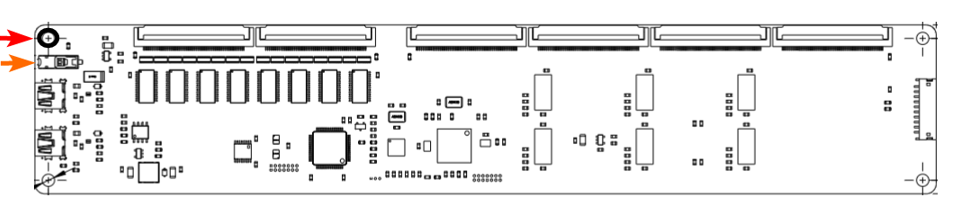

Skin Dualtouch

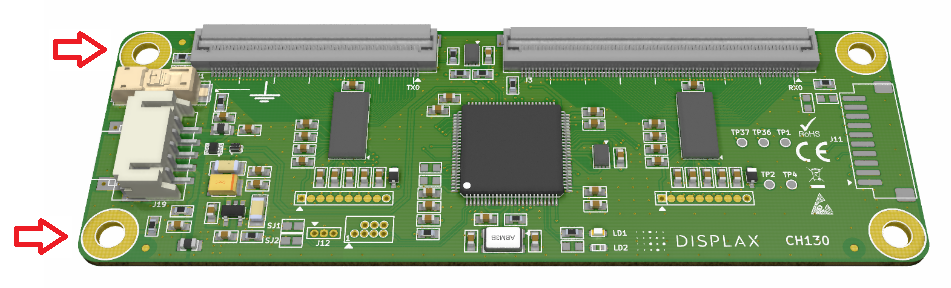

CH130

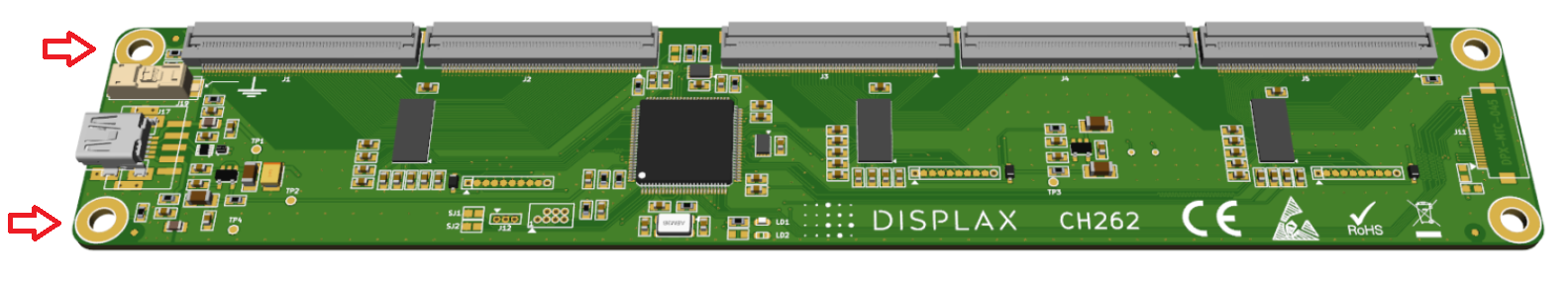

CH262

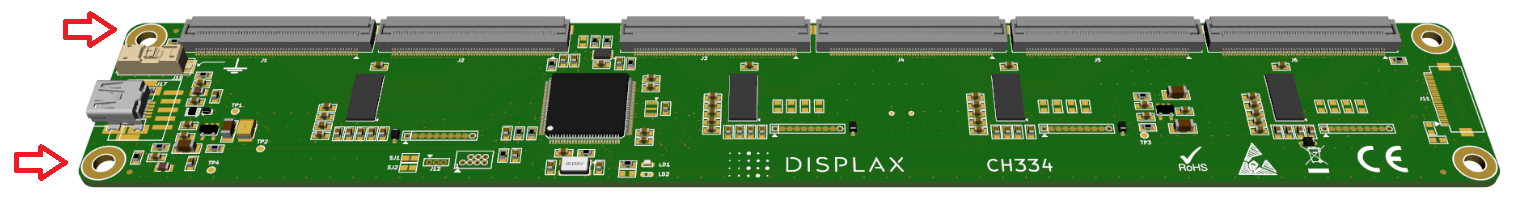

CH334
