Overview

The Automatic Reference Frame Trigger feature allows the Touch Controller to automatically “clean” noise from sensor edges when specific touch conditions are met.

This is especially useful when:

  • False touches appear near sensor edges

  • EMI fluctuates during operation

  • Manual reference frames are impractical

Command Syntax

displaxservice -a 127.0.0.1 --te2fnref o x y

Parameters Explained

o – Edge Area Size
Defines how many rows/columns around the edges are affected.

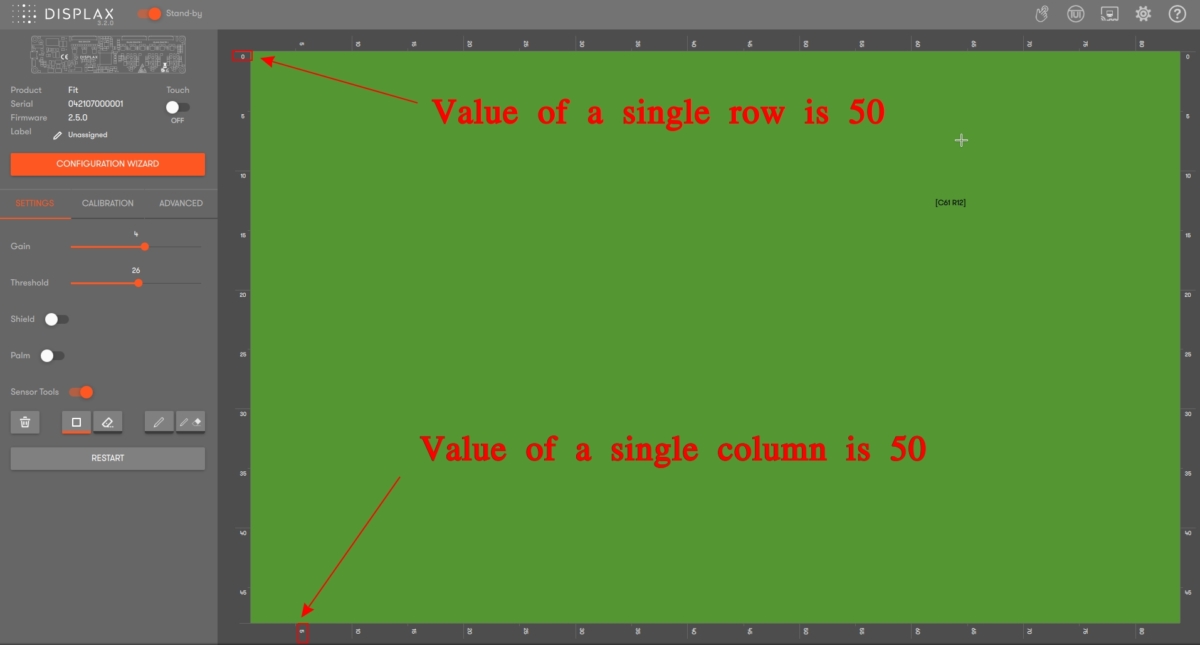

Each row or column equals 50 units:

  • 1 line → o = 50

  • 2 lines → o = 100

  • 3 lines → o = 150

  • N lines → o = 50 × N

x – Touches at the Edges

  • Number of touches within the edge area required to trigger the reference

  • Recommended value: 2 or 3

y – Touches in Active Area

  • Number of touches allowed in the active area

  • Recommended value: 0 (no touches)

Example

displaxservice --te2fnref 100 2 0

This triggers a new reference frame when:

  • Two lines around all edges are monitored

  • There are 2 touches at the edges

  • There are 0 touches in the active area

Making the Setting Permanent

To save this configuration to the Touch Controller:

displaxservice --device-settings save
