Using Graphics Card Only

Using Graphics Card Only

As an alternitave to the Daisy Chain connection mode, you can connect each TILE unit directly to the computer's graphics card via the Display Port connection.

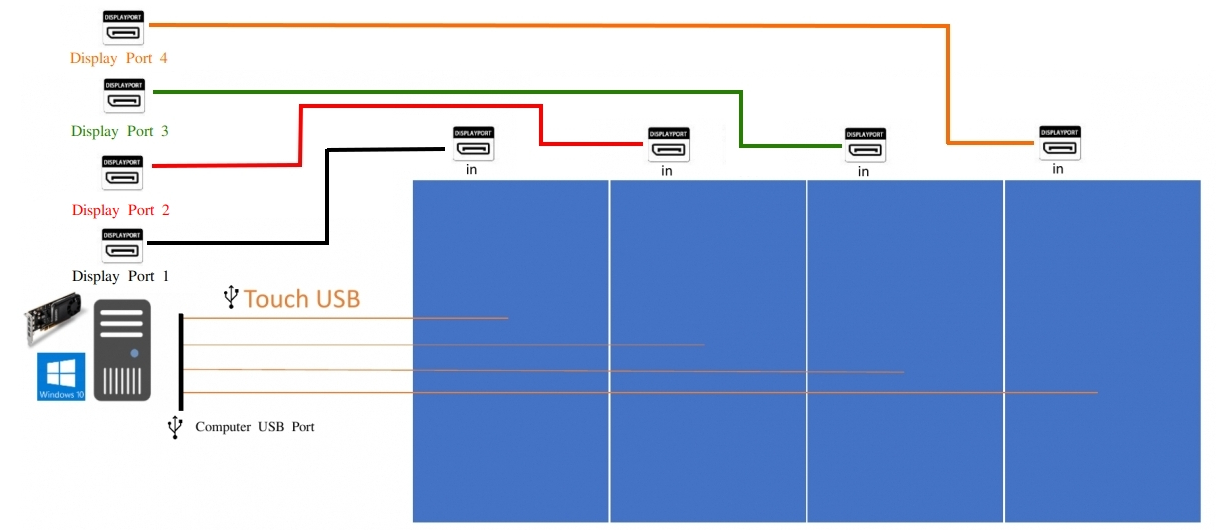

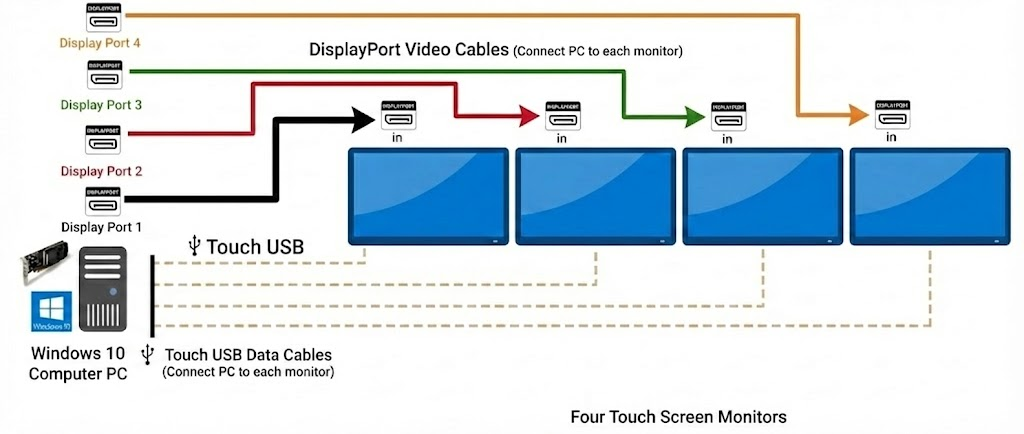

The below picture demonstrates an example with 4 Tile units connected to 4 Display Port outputs on one GPU.



Important: The number of Tile units you can link together is limited by how many screens/monitors your graphics card is capable of handling. Please verify the graphics card specifications to ensure you can use the number of Tile units you want to.

Resolution in this configuration:

As each single Tile unit has a resolution of 1920X1080, the total resolution will need to be calculated according to the number of Tile units you have.

In this example you have 4 Tile units in Portrait orientation, which means the total resolution will be 1920 X ( 1080 X 4 ) = 1920 X 4320
