Video Wall Calibration (TILE Pro)

Video Wall Calibration (TILE Pro)

Overview

Video Wall Calibration in DISPLAX Connect simplifies the calibration of multiple TILE Pro units in a video wall or table configuration. The feature allows all connected TILE Pro devices to be calibrated in one session, saving time and ensuring consistent touch accuracy.

DISPLAX Connect automatically detects every connected TILE Pro and assigns initial calibration areas. All detected units are shown in the left panel of the interface.



Example Configuration

4 TILE Pro units in portrait orientation, arranged as 4 vertical columns in 1 horizontal row (4×1).


How to Calibrate a Video Wall

1. Start Video Wall Calibration

  1. Launch DISPLAX Connect.

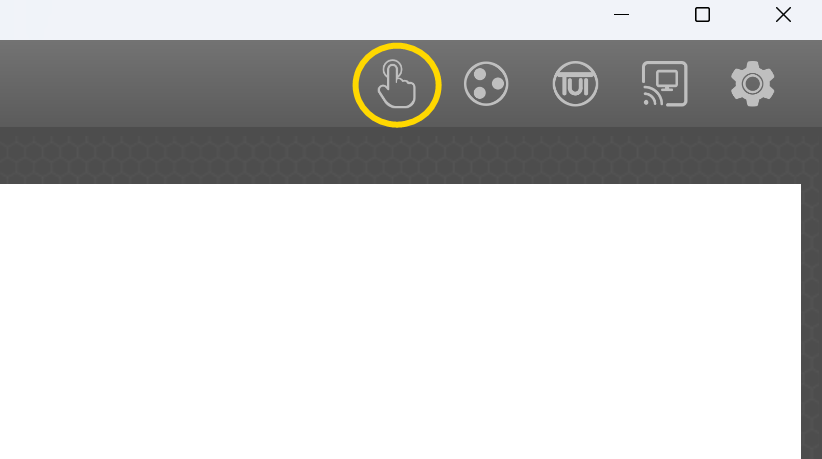

  2. Open the CALIBRATION menu.

  3. Select Video Wall.

2. Configure the Video Wall

  1. When the Config Video Wall option appears, select the correct matrix.

    • Example: 4×1

  2. Click CALIBRATE.


DISPLAX Connect will automatically populate calibration areas for all TILE Pro units.


Performing the Calibration

  1. Press Spacebar to start calibration.

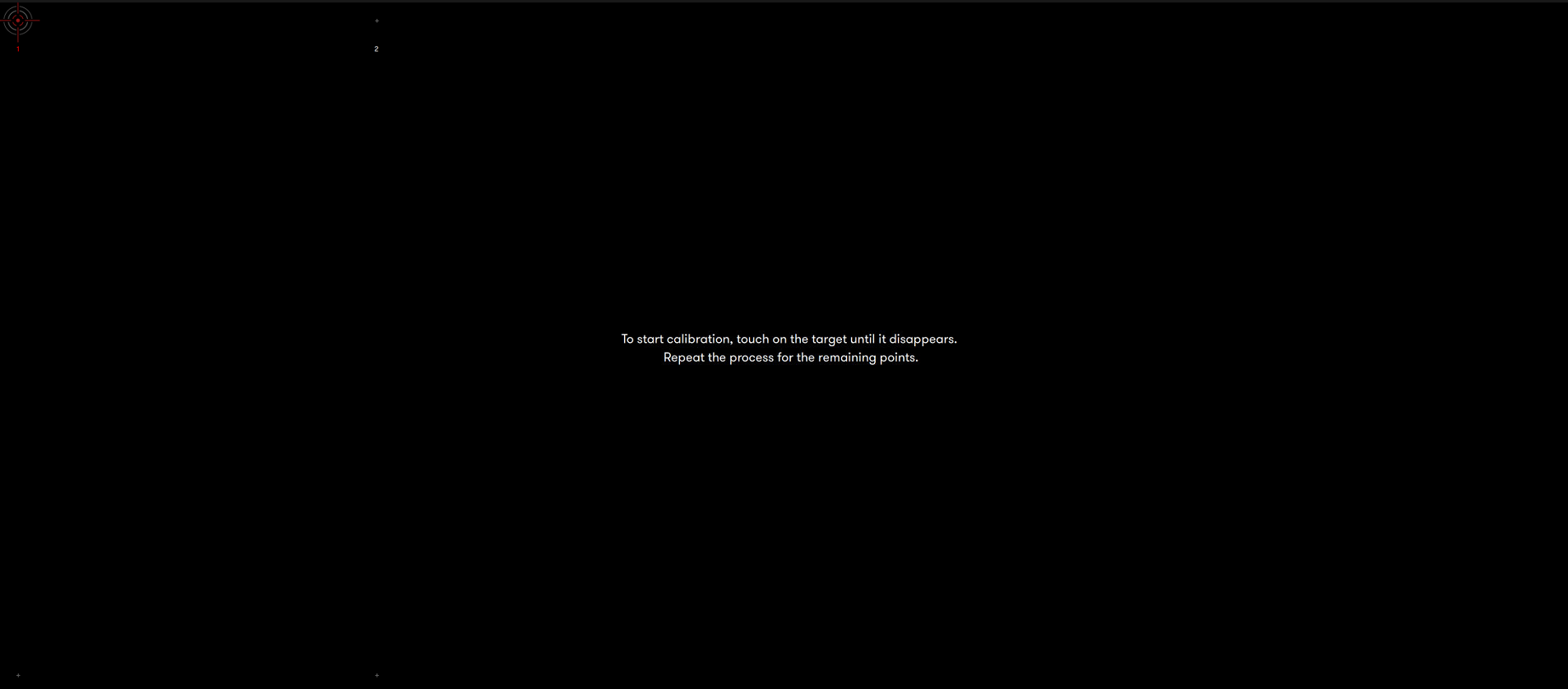

  2. Calibration targets will appear one TILE Pro at a time (four targets per TILE).

  3. Touch and hold the center of each target until the green circle completes around it.

  4. Continue until all TILE Pro units are calibrated.


Completion

Once the final TILE Pro is completed, the video wall becomes a single, unified touch surface, ready for use. You may test in Displax Painter to confirm touch performance and accuracy across all TILE Pro units.



⚠️Remember to close Displax Connect once calibration and testing are concluded.
