Wireless Charger
Wireless Charger – DPXActiveOR
Section: Object Recognition > Active OR > Wireless Charger
The DPXActiveOR wireless charger provides a convenient way to recharge active tags without wires or downtime. Tags can remain ready for use, charging automatically whenever they are placed on the charger, and immediately available for interaction again once picked up.
This eliminates the need for wired charging and avoids situations where tags are unavailable due to being connected to cables.
Key Benefits
-
Wireless charging – no hanging wires, no manual plug-in required
-
Always ready – tags charge while idle, outside the sensor area
-
Convenient placement – chargers can be positioned near the sensor for quick access
-
Continuous availability – tags remain ready to pick up and use at any time
Installation and Placement
-
Mount or assemble the wireless charger close to the interactive surface, ideally where users naturally place tags after using them.
-
A typical placement is at the border or side of the table, near the touch sensor area.
-
Ensure the charger is outside the active touch zone, so charging does not interfere with interaction.
Variants Available

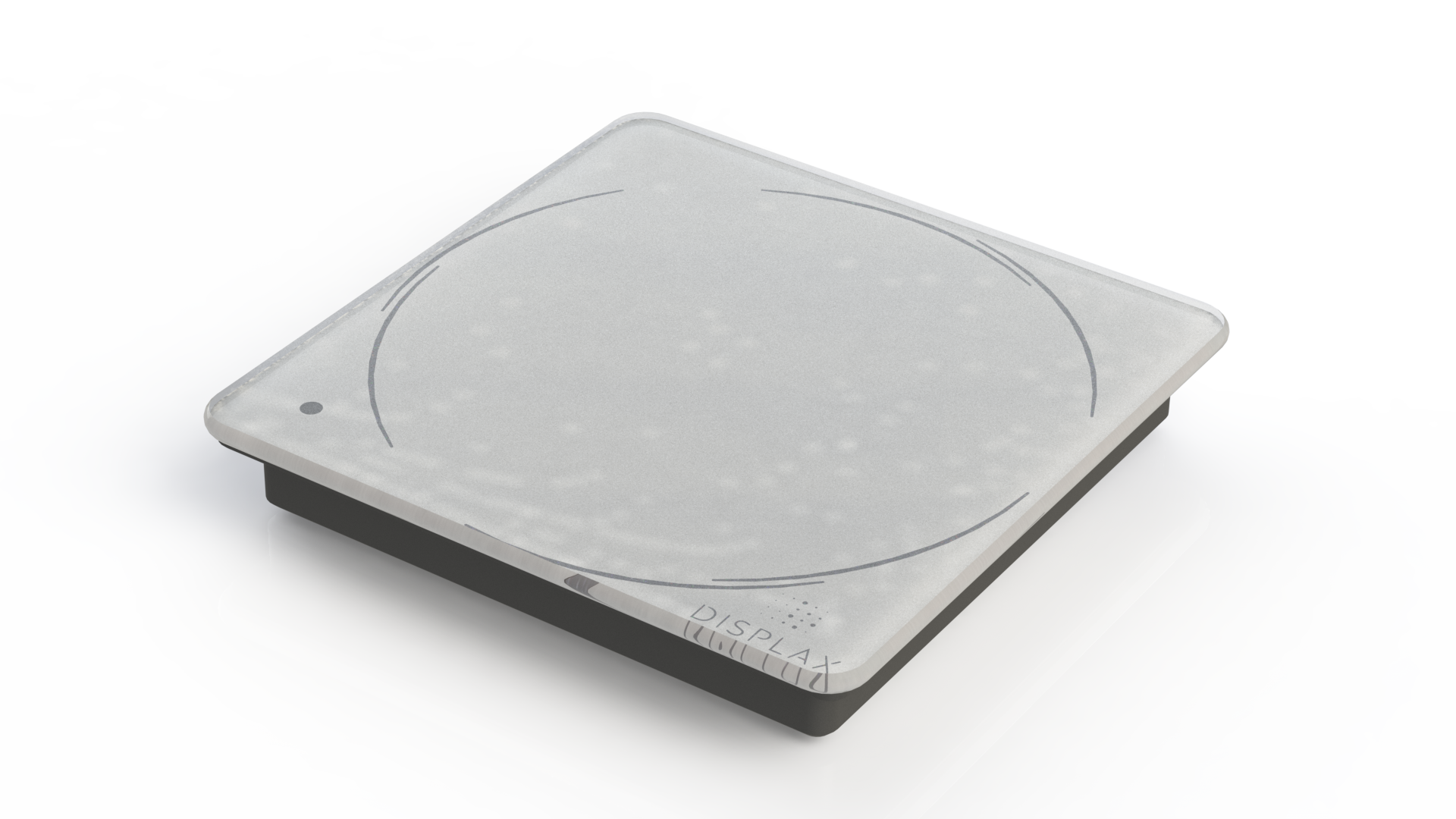

Ready-to-Use Version
-
Designed to be placed on top of a levelled surface
-
Includes a glass cover for durability
-
Intended for use outside the touch sensor area
-

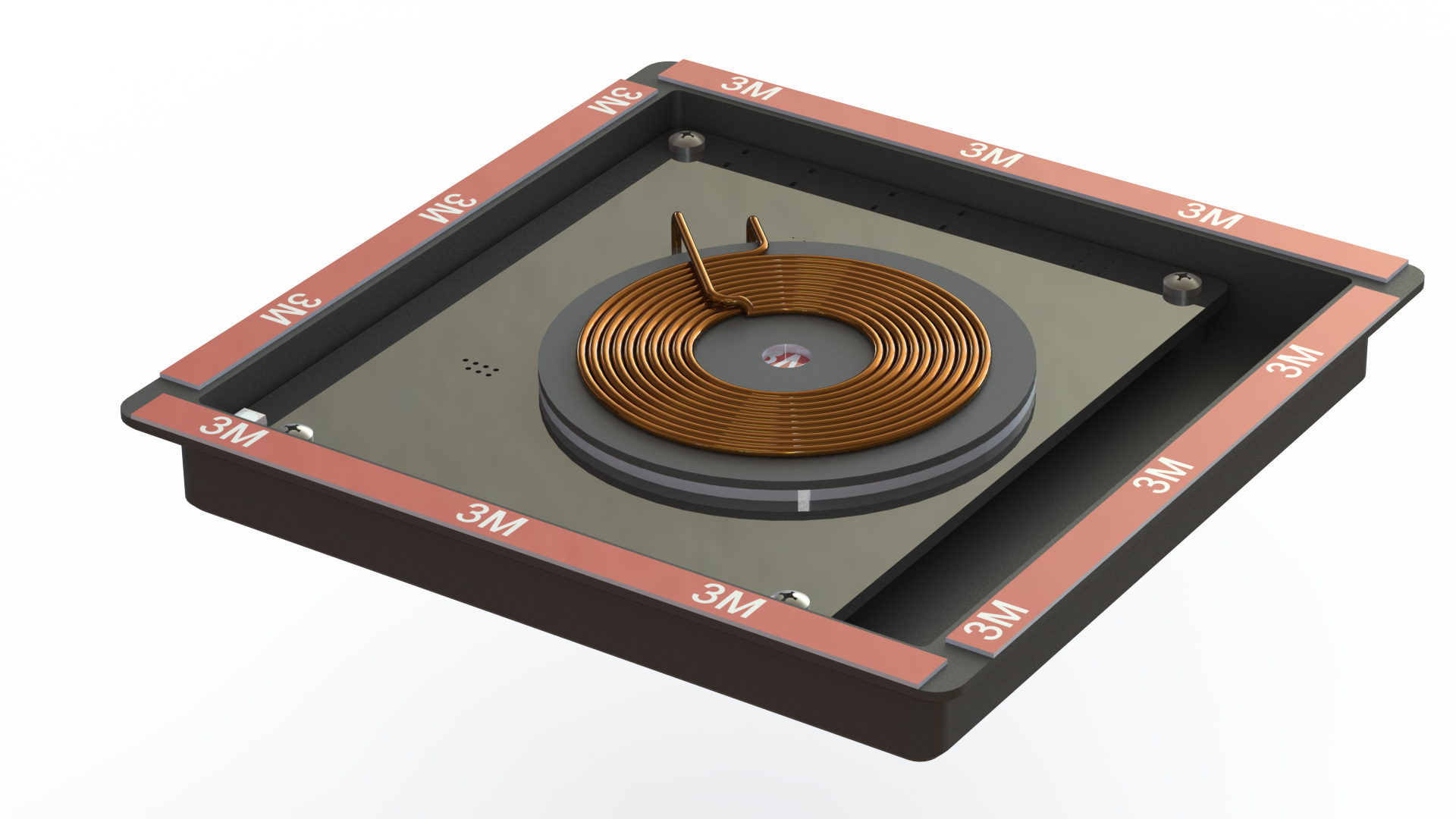

Integration Version
-
Supplied without a glass cover
-
Designed for custom integration into furniture, enclosures, or other installations
-
