RS232 Commands List

RS232 Packet Format:

Header

Monitor Addr (First)

Monitor Addr (Last)

Command1

Command2

Checksum

In detail:

Number of Field	Name of Field	Power On /Off Settings	Signal Source Settings
Data1	Header	Header = 0xD5	Header = 0xD5
Data2	Monitor Addr (First)	0x11 - 0xAA (Numbers are reversed)	0x11 - 0xAA (Numbers are reversed)
Data3	Monitor Addr (Last)	0x11 - 0xAA (Numbers are reversed)	0x11 - 0xAA (Numbers are reversed)
Data4*	Command1	Power function, Command1 = 10	Source function Command1 = 20
Data5*	Command2	Power Off, Command2 = 00	HDMI, Command2 = 05
		Power On, Command2 = 01	DP, Command2 = 08
Data6	Checksum	Checksum = 0xAA	Checksum = 0xAA

*Note: For the commands of Data4 and Data5 please see Command List Sheet below.

All commands appear in the Debug window of the ScreenControl software upon executing them.

Example:

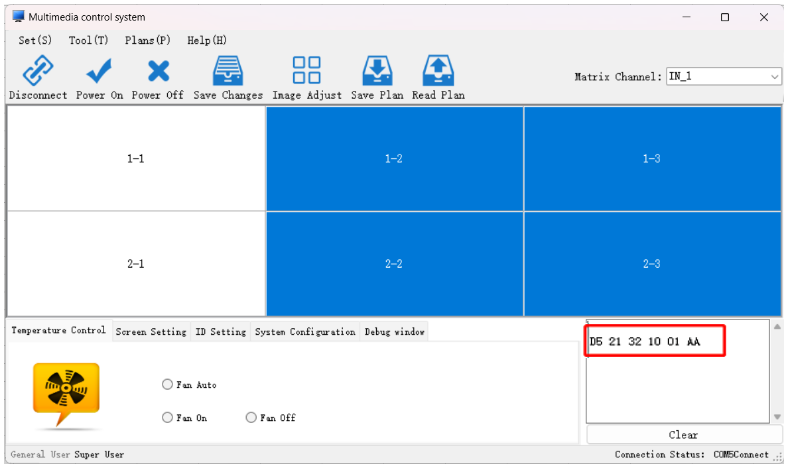

Videowall with 2x3 matrix, to assign the monitors which are selected as blue to power on, the command is D5 21 32 10 01 AA

COMMAND LIST SHEET

Type	Command 1 (Data4)		Command 2 (Data5)
Type	Data	Description	Data	Description
Power	10	on/off	00	Off
Power	10	on/off	01	On
Channel Splice Setting	20	Channel Switch (Splice)	00	AV
			01	S-VIDEO
			02	VGA
			03	DVI
			05	HDMI
			08	DP
Video Frequency Control	30	Contrast Ratio	00	Decrease
	30	Contrast Ratio	01	Increase
	31	Brightness	00	Decrease
	31	Brightness	01	Increase
	32	Color Saturation	00	Decrease
	32	Color Saturation	01	Increase
	33	Tone	00	Decrease
	33	Tone	01	Increase
	34	Clarity	00	Decrease
	34	Clarity	01	Increase
	35	R Adjust	00	Decrease
	35	R Adjust	01	Increase
	36	G Adjust	00	Decrease
	36	G Adjust	01	Increase
	37	B Adjust	00	Decrease
	37	B Adjust	01	Increase
	38	Horizontal Position	00	Decrease
	38	Horizontal Position	01	Increase
	39	Vertical Position	00	Decrease
	39	Vertical Position	01	Increase
VGA/DVI control	40	RGB Contrast Ratio	00	Decrease
	40	RGB Contrast Ratio	01	Increase
	41	RGB Brightness	00	Decrease
	41	RGB Brightness	01	Increase
	42	PC color temperature	01	Normal
	43	PC color temperature	01	Warm Tone
	44	PC color temperature	01	Cool Tone
	45	color temperature (R Gain)	00	Decrease
	45	color temperature (R Gain)	01	Increase
	46	color temperature (G Gain)	00	Decrease
	46	color temperature (G Gain)	01	Increase
	47	color temperature (B Gain)	00	Decrease
	47	color temperature (B Gain)	01	Increase
	48	ADC R Offset	00	Decrease
	48	ADC R Offset	01	Increase
	49	ADC G Offset	00	Decrease
	49	ADC G Offset	01	Increase
	4A	ADC B Offset	00	Decrease
	4A	ADC B Offset	01	Increase
	4B	ADC（R Gain)	00	Decrease
	4B	ADC（R Gain)	01	Increase
	4C	ADC（G Gain)	00	Decrease
	4C	ADC（G Gain)	01	Increase
	4D	ADC（B Gain)	00	Decrease
	4D	ADC（B Gain)	01	Increase
	4E	Automatic Adjustment	01	Adjustment
	4F	Horizontal Position	00	Decrease
	4F	Horizontal Position	01	Increase
	50	Vertical Position	00	Decrease
	50	Vertical Position	01	Increase
	51	Color Automatic Adjustment	01	Adjustment
	52	Clock Setting	00	Decrease
	52	Clock Setting	01	Increase
	53	Phase Adjustment	00	Decrease
	53	Phase Adjustment	01	Increase
	5a	Horizontal Frame	(0~100)	Adjustment
	5b	Vertical Frame	(0~100)	Adjustment
	5c	STILL	01	Change
System	60	User Reset	01	Default System
System	70	Reserve the Data	01	Save the tuned data
Function Adjustment	76	Fan and Temperature Control	00	Fan is controlled by the temperature (35°C Fan OFF; 45°C Fan ON)
			01	Fan ON
			02	Fan OFF
System Parameters Adjustment	80	TI Parameters Adjustment	00	TI 1 (For LG panel)
	80	TI Parameters Adjustment	01	TI 0 (For Samsung, BOE panel)
	81	TI Mode	00	Normal Mode
	81	TI Mode	01	Memory Mode
	82	Software Version Information	01	Load
	83	Turn On Automatic Adjustment	00	Close
	83	Turn On Automatic Adjustment	01	Open
	85	No Signal	00	BLACK
	85	No Signal	01	BLUE
	90	Backlight Brightness Adjustment	00	Decrease
	90	Backlight Brightness Adjustment	01	Increase
	9f	Test Signal	00	Decrease
	9f	Test Signal	01	Increase
Plan Mode	A0	Plan Mode Reserve	1~16	Save
	A1	Plan Mode Load	1~16	Load
	A2	Backlight Brightness	0－255	Adjustment
	A3	Color Format	00	Automatic
			01	PAL
			02	NTSC
			03	SECAM
Noise Canceling Mode			00	Close
			01	Low
			02	Medium
			03	High
			04	Automatic
Switch AB group	A5		00	Normal
	A5		01	Switch the data of A or B group
	81	AB Mode	00	Normal Mode
	81	AB Mode	01	Memory Mode
Repetition Rate Adjustment	b8	Horizontal Direction	00	Decrease
	b8	Horizontal Direction	01	Increase
	b9	Vertical Direction	00	Decrease
	b9	Vertical Direction	01	Increase
