Stand-by, ON, and OFF Touch Injection Modes in Displax Connect

When setting up your touch controller for the first time, it’s essential to set the Touch Injection status to ON before closing Displax Connect. The factory default is OFF, and leaving it off will prevent the touch controller from processing touch signals.

Touch Injection Status Modes

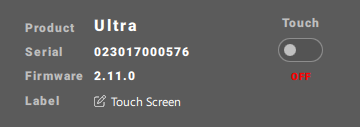

❌ OFF

  • Disables touch input completely.

  • Touch will not function until Touch Injection is set to ON again.

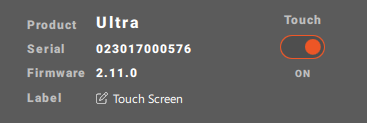

✅ ON

  • Touch input is enabled.

  • Once touch injection is set to ON before exiting Displax Connect, it will automatically switch to STAND-BY when you re-open the app, and then return to ON when you close it.

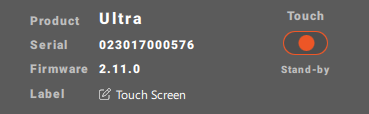

⏸️ STAND-BY

  • Temporarily disables touch input while Displax Connect is open, allowing you to adjust settings without accidental touches affecting the operating system.

  • Once you close Displax Connect, touch injection is automatically re-enabled (set to ON).

  • This mode is active only when Displax Connect is running.


Idea
Important Notes

  • To disable automatic STAND-BY, you can toggle Stand-by OFF in the top pane of Displax Connect. This prevents the Touch button status from changing automatically when opening or closing the app.

  • Performance Tip: Only launch Displax Connect when adjusting settings. Keeping it open decreases touch speed.

  • All configuration settings are saved directly on the Touch Controller. Once configured, you can connect the controller to any HID-compliant computer without needing to redo the touch settings.
