Controllers and Config

Controllers and Config

Depending on its size, the Skin Mesh sensors may require different Touch Controllers.

Displax have three options available:

  • CH130 - 22" to 32"
  • CH262 - 43" to 55"
  • CH334 - 65" to 86"


Each of the above controllers has a specific configuration (Config ID), based on the characteristics and size of each sensor.

This Config ID is set before the units are shipped, which means the controllers only work with the specific sensor type and size they were set up for.

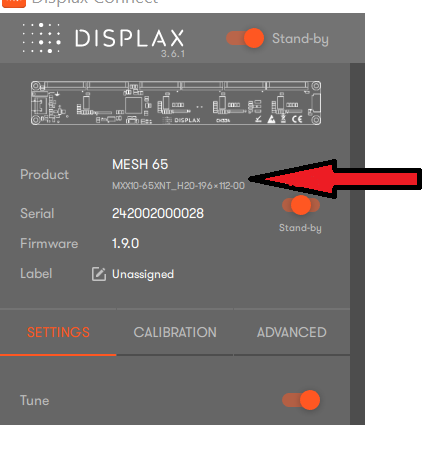

You can see the size and configuration name next to Product in the left pane of Displax Connect, as shown in the image below:
