Connecting the Touch Controller to the Sensor

Overview

A proper connection between the touch sensor's FPC cables (flex) and the touch controller (PCB) is essential to ensure optimal touch performance.

Each FPC cable has a specific connector port on the PCB. Ensure cables are fully seated and correctly aligned before locking the connector.

---

FPC Cable Connection

Follow these steps to connect the flex cables securely:

1. Open the Connector Lock
   Raise the connector lock into a fully vertical position (90º), perpendicular to the touch controller board.

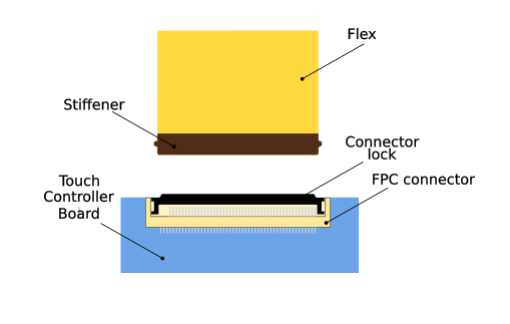

   Fig. 1 - Ribbon Cable and Connector

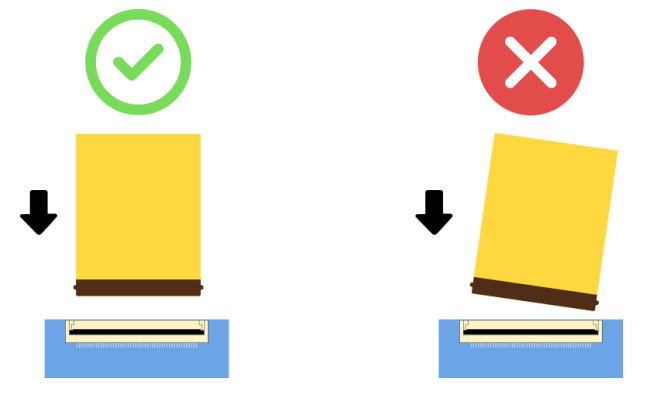

2. Insert the FPC Cable
   While holding the controller steady, insert the FPC cable horizontally, making sure it's perpendicular to the open lock.

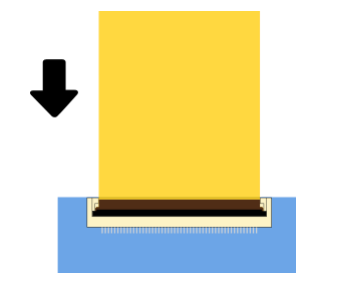

   Fig. 2 - Insert the Ribbon Cable























3. Insert Fully
   Push the cable until it stops at the back of the FPC connector.


   Fig. 3 - Ribbon Cable Inserted



















4. Stiffener Lock Engagement
   Gently pull the cable slightly backward until the notches in the stiffener click into position.

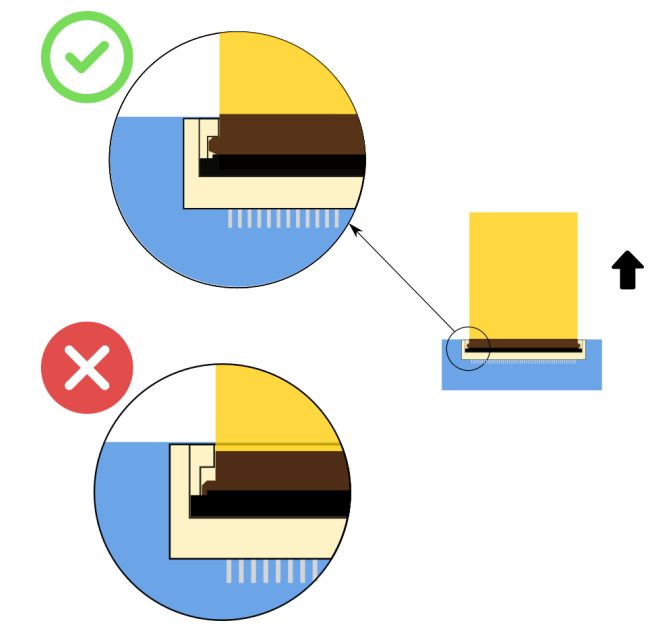

   Fig. 4 - Correct Position

































5. Close the Connector Lock
   Press down on the center of the connector lock to close it. Ensure the stiffener is perfectly aligned with the lock on both sides.

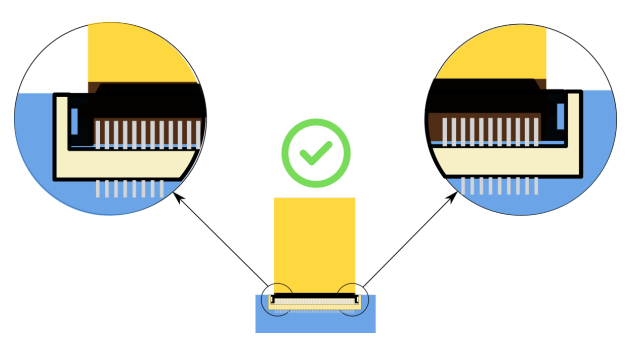

   Fig. 5 - Connector Locked























❗ If the stiffener isn’t aligned or the cable isn’t centered, repeat the process. Misalignment can result in connection failure.

Fig. 6 - Bad Connection

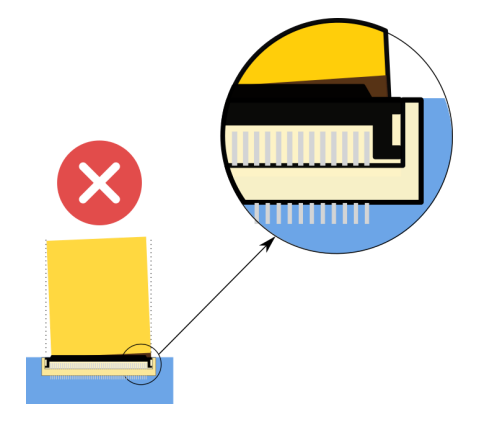

Fig. 7 - Bad Aligment / Connection
