Daisy Chain up to 6 TILE units from 2022 onwards
It is possible to daisy chain up to 6 TILE units to connect to a single DP port with TILEs produced from 2022 onwards.

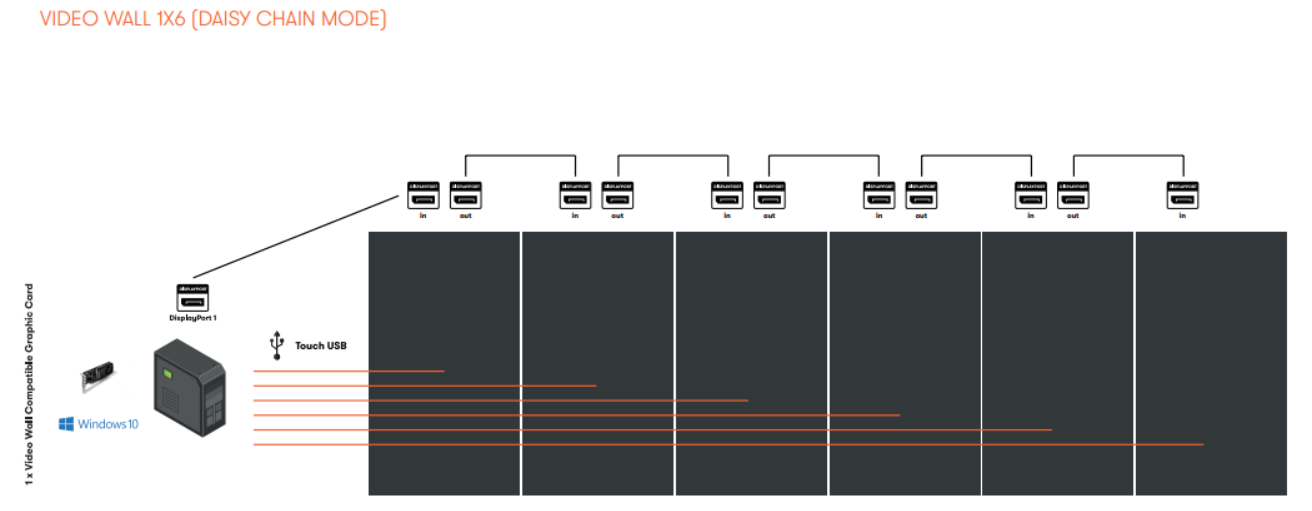

In the image above we have a video wall consisting of TILEs in 1 horizontal row, and 6 vertical columns. The TILEs are all connected via Display Port cables in daisy chain mode, with a single Display Port cable connected to a PC with a video wall supporting GPU.
Each TILE is connected via USB cable to the PC. Here you may use active USB extenders or hubs if needed. Please click here for more details on USB Extenders and Hubs.
For large videowalls of 6 TILEs or more, you can follow the same steps as outlined in our support articles listed below, using branches of up to 6 daisy chained TILE units each:
