How to peel off the protective layer from the touch sensor?

Before beginning lamination, the protective layer on the adhesive side of the Displax touch sensor must be carefully removed. This layer prevents contamination and damage during handling and must be peeled off with care.

Step 1 – Prepare the Lamination Wall

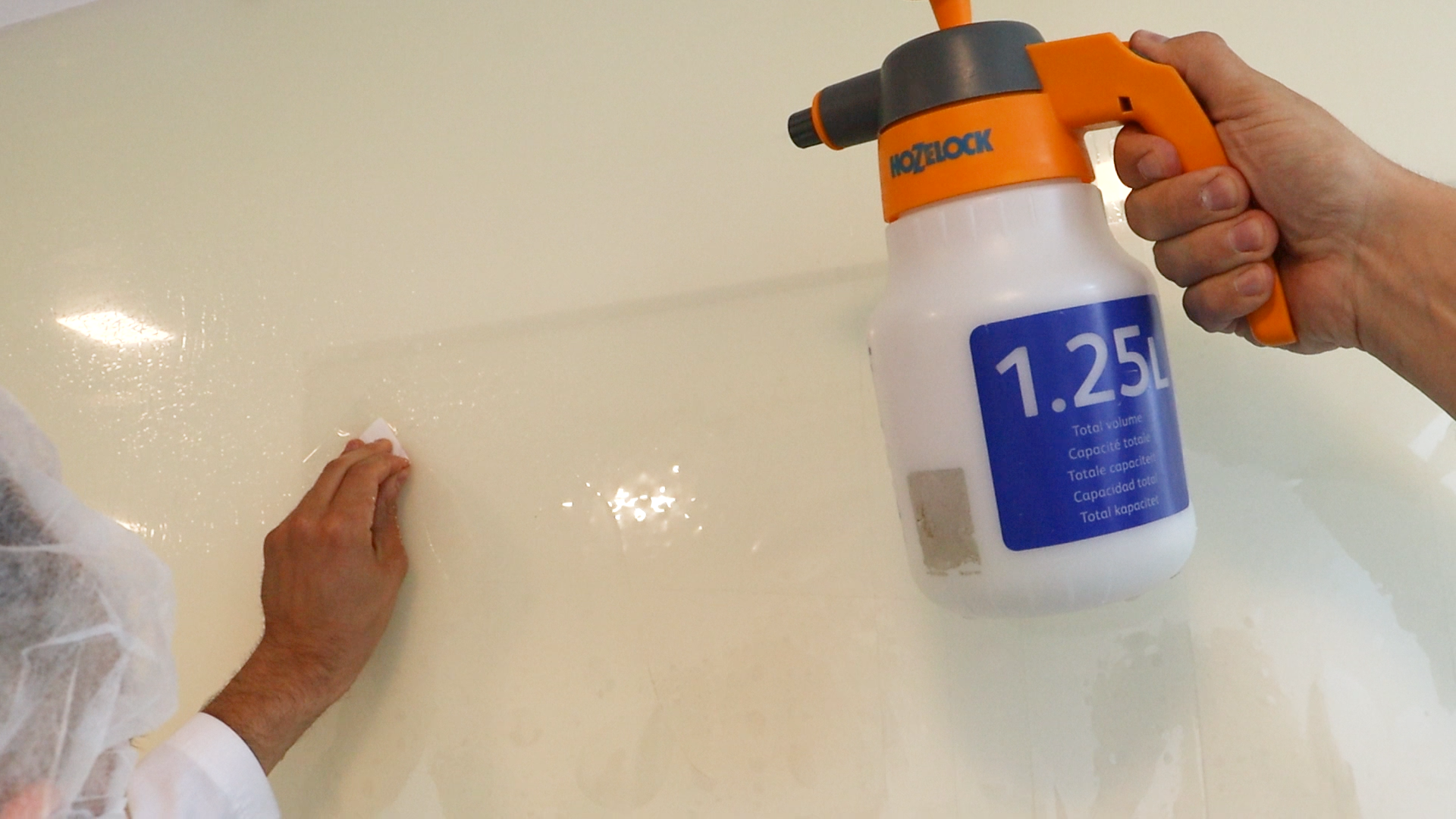

Spray water evenly on the lamination wall surface (Fig. 6)
This helps the sensor temporarily adhere to the wall, making the next steps easier

Step 2 – Place the Sensor

Hold the touch sensor by its edges
Press it against the wall, with the protective layer facing out toward you
The “QA APPROVED” label identifies which layer should be removed

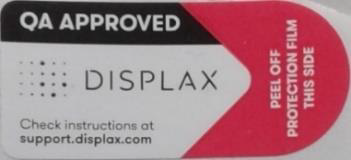

Fig. 7 – “PEEL OFF PROTECTION FILM THIS SIDE” label

Fig. 8 – Sensor placed on wall with protective layer outward

Step 3 – Peel Off the Protective Layer

Wet your fingertips with the lamination solution
Begin peeling at the “QA APPROVED” tab (Fig. 9)
While peeling, continuously spray the solution onto the exposed, adhesive side of the foil to prevent leaving fingerprints or marks (Fig. 10)

Important technique:

Peel slowly and closely against the sensor surface
Avoid pulling away or upward — this prevents kinking or bending the sensor grid

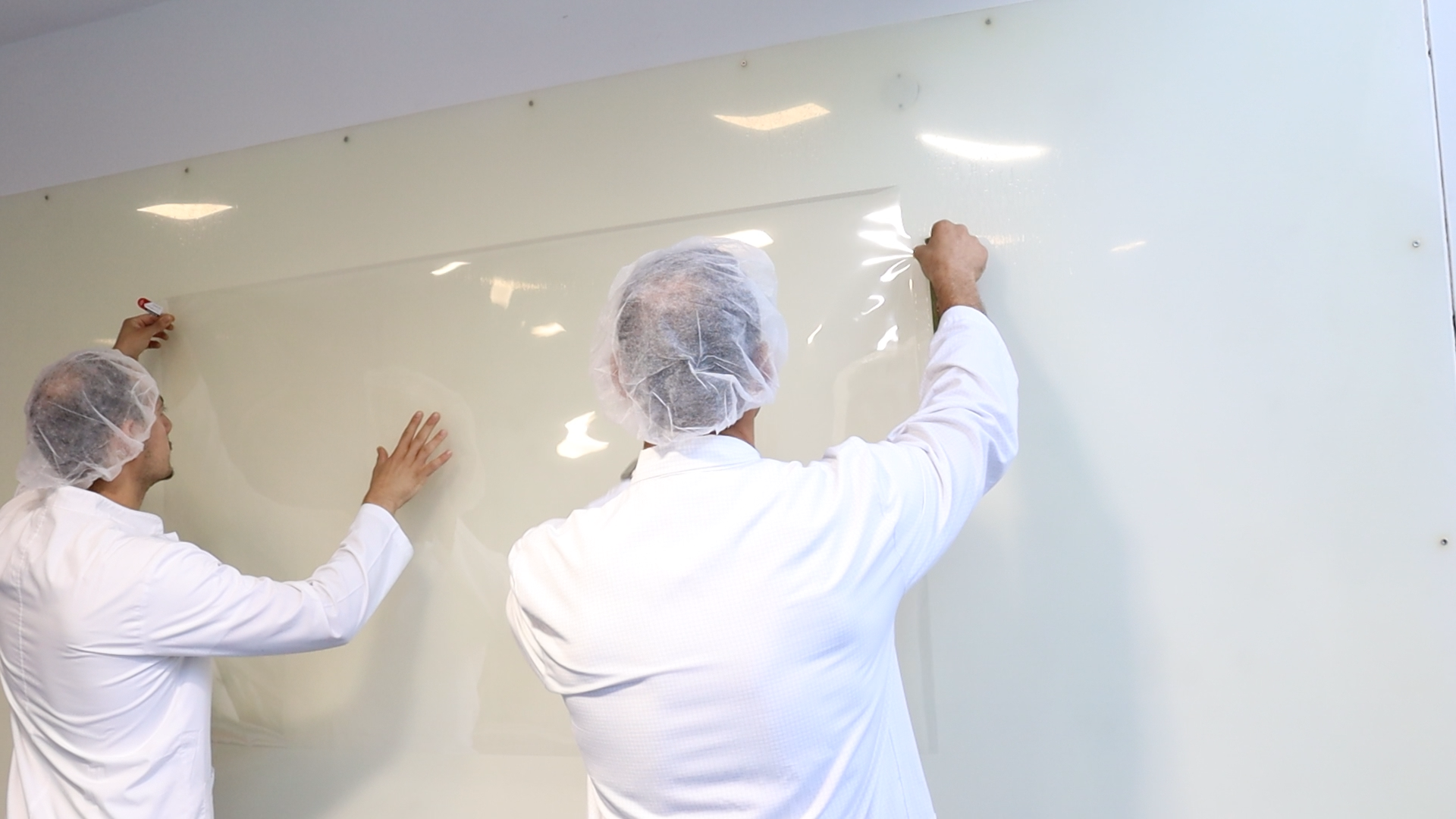

Fig. 9 – Gripping the peel tab with wet fingers

Fig. 10 – Spraying solution while peeling the protective layer
